SKU: RAX535-MB

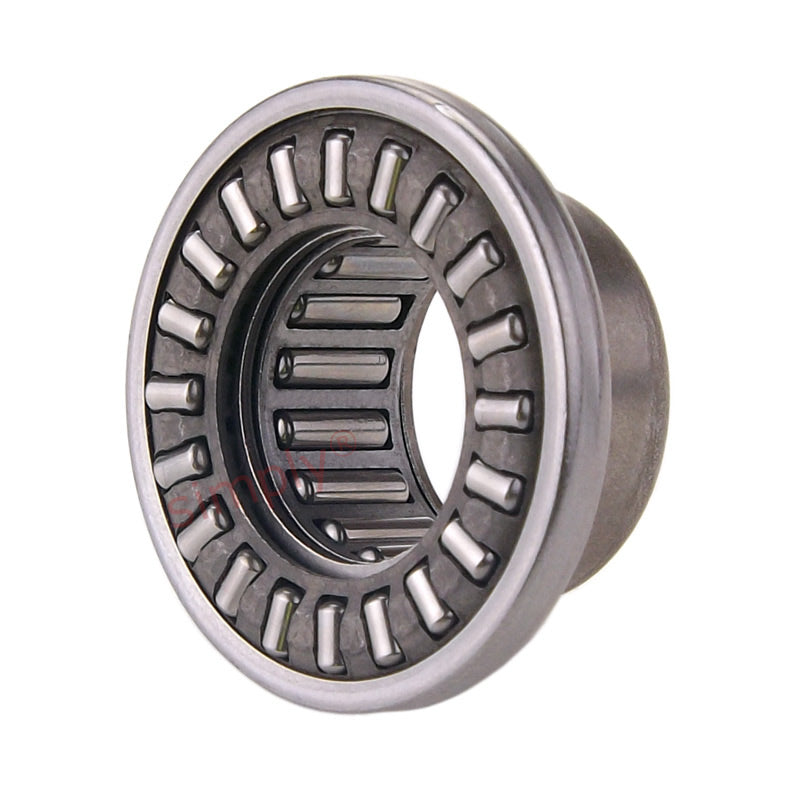

Major Brand RAX 535 Needle Combined Bearing with Needle Thrust Cage 35x47x27mm Allow 2-3 Days
- Regular price
- $467.13 ex VAT
- Sale price
- $467.13
- Regular price
-
Not in stock
Quantity Price Breaks
10
$415.75
19
$392.39
29
$387.72
39
$383.05
49
$378.38
74
$373.70
99
$350.35
199
$345.68
249
$341.00
499
$336.33
999
$326.99
SKU:
RAX535-MB

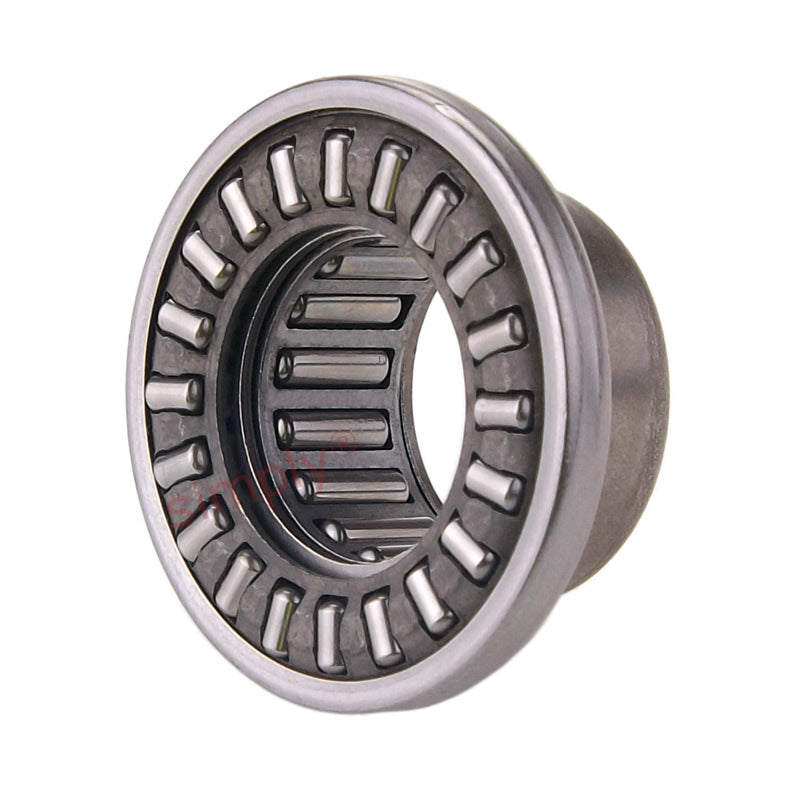

Major Brand RAX 535 Needle Combined Bearing with Needle Thrust Cage 35x47x27mm Allow 2-3 Days
- Regular price
- $467.13 ex VAT
- Sale price
- $467.13
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |

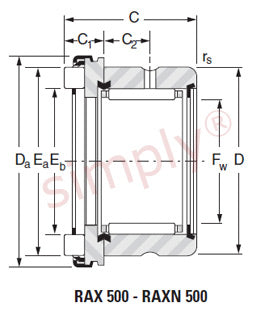

Technical
| Fw | = | 35mm |
| C | = | 27mm |
| D | = | 47mm |
| Da | = | 53.4mm |
| Eb | = | 37.8mm |
| Ea | = | 47.8mm |
| C1 | = | 9mm |
| C2 | = | 9mm |
| rs min | = | 0.85mm |
| Radial dynamic load | = | 22.1 kN |
| Radial static load | = | 40.8 kN |
| Axial dynamic load | = | 33.8 kN |
| Axial static load | = | 94 kN |
| Speed rating | = | 5500 rpm |
| Inner ring | = | JR 30x35x20 kN |
| Weight | = | 0.146 kg |
