SKU: RABRB40/85-FA106-INA

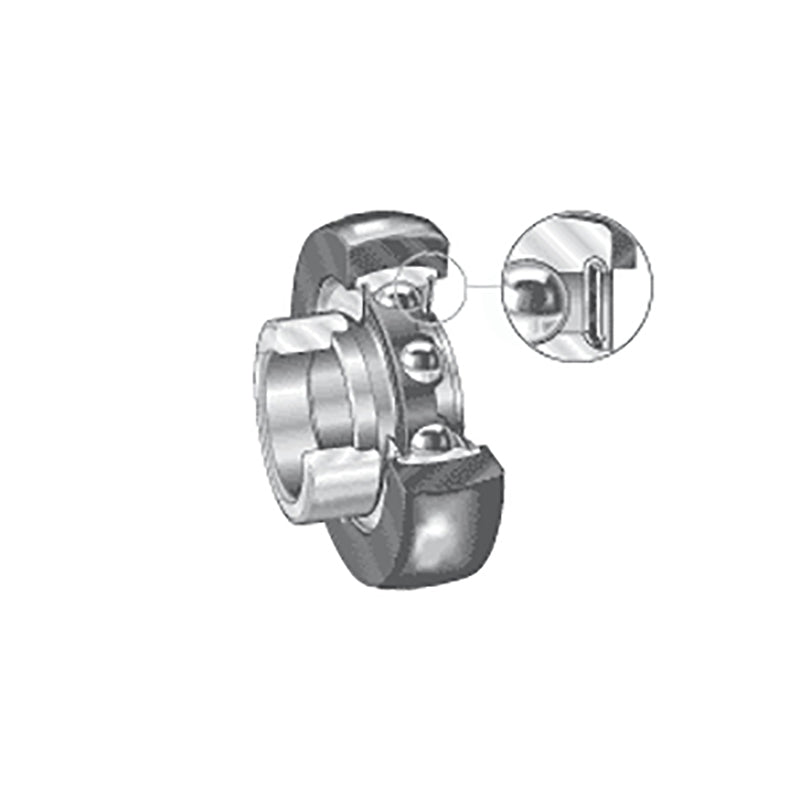

INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm
- Regular price
- $76.18 ex VAT
- Sale price
- $76.18
- Regular price
-
In stock
Quantity Price Breaks
10+
$67.80
19+
$63.99
29+
$63.23
39+
$62.47
49+
$61.71
74+
$60.94
99+
$57.14
199+
$56.37
249+
$55.61
499+
$54.85
999+
$53.33
SKU:
RABRB40/85-FA106-INA
INA RABRB40/85XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 40x85x46.3mm
- Regular price
- $76.18 ex VAT
- Sale price
- $76.18
- Regular price
-
Description
|

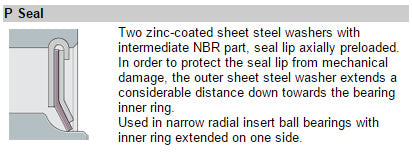

INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
Technical
| d | = | 40mm |
| D | = | 85mm |
| B2 | = | 46.3mm |
| B1 | = | 43.8mm |
| C | = | 27mm |
| D2 | = | 70mm |
| d3 max | = | 58mm |
| S1 | = | 32.7mm |
| Operating temperature | = | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | = | 70 deg |
| Rubber ring: load carrying capacity Cg | = | 3500 N |
| Dynamic load Cr | = | 32500 N |
| Static load C0r | = | 19800 N |
| Designation of rubber interliner | = | RABR80/85 |
| Designation of bearing | = | RAE40-NPP-B-FA106 |
| Weight | = | 0.73 kg |
