SKU: PHS5.EC

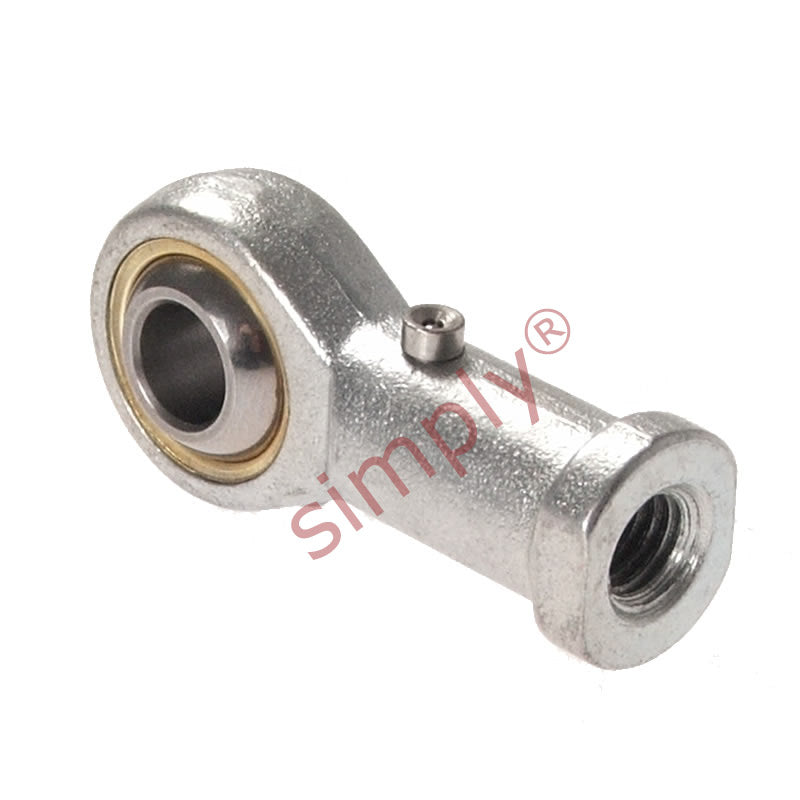

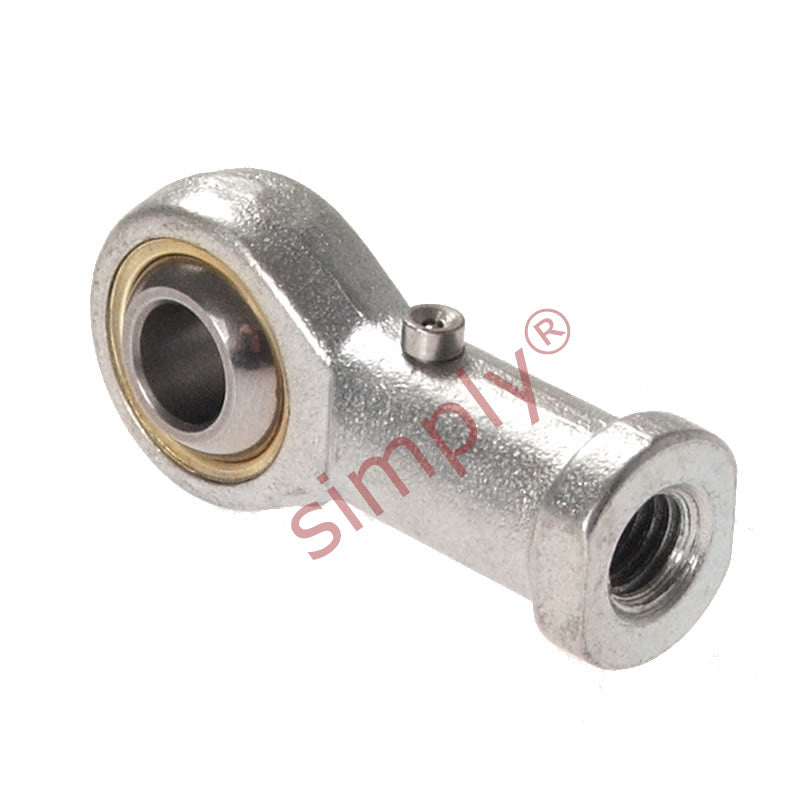

Budget PHS5 Right Hand Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
- Regular price
- $25.13 ex VAT
- Sale price
- $25.13
- Regular price
-
In stock
Quantity Price Breaks
10
$22.37
19
$21.11
29
$20.86
39
$20.61
49
$20.36
74
$20.10
99
$18.85
199
$18.60
249
$18.34
499
$18.09
999
$17.59
SKU:
PHS5.EC
Budget PHS5 Right Hand Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
- Regular price
- $25.13 ex VAT
- Sale price
- $25.13
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 5mm |
| B | = | 8mm |
| r1 | = | 0.3mm |
| C1 | = | 6mm |
| d1 max | = | 7.7mm |
| d2 | = | 16mm |
| d3 | = | M5x0.8 |
| h1 | = | 27mm |
| L3 | = | 13mm |
| L4 | = | 35mm |
| L5 | = | 4mm |
| d4 | = | 9mm |
| d5 | = | 11mm |
| S | = | 9mm |
| Ball diameter | = | 7/16 inch |
| Dynamic load Cr | = | 3.3 kN |
| Static load Cor | = | 5.8 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.0165 kg |
