SKU: PBS-DS-10B-23

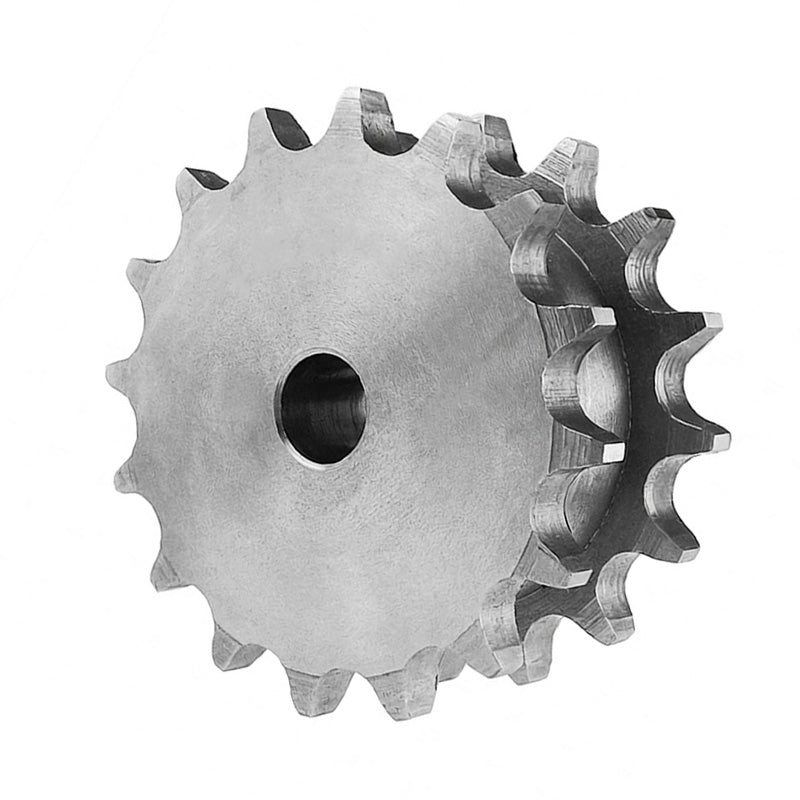

23 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- $44.40 ex VAT
- Sale price
- $44.40
- Regular price
-
Not in stock
Quantity Price Breaks
5
$39.52
9
$37.30
19
$36.85
29
$36.41
49
$35.96
74
$35.52
99
$33.30
199
$32.86
249
$32.41
499
$31.97
999
$31.08
SKU:
PBS-DS-10B-23
23 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
- Regular price
- $44.40 ex VAT
- Sale price
- $44.40
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 23 |
| Pitch Diameter dp | = | 116.58mm |
| Outer Diameter de | = | 123.4mm |
| Width B | = | 36.5mm |
| Hub Diameter N | = | 100mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Stock Bore D1 | = | 19mm |
| Weight | = | 1.183 kg |
