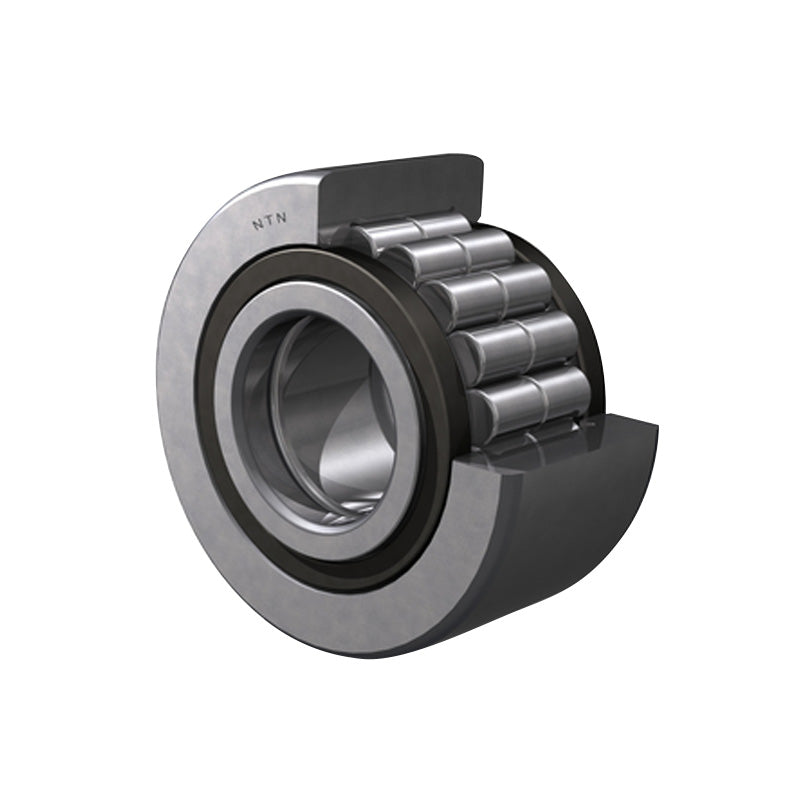

NTN NUTR202/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

SKU: NUTR202/3AS-NTN

NTN NUTR202/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

$38.60 ex VAT
$38.60
ex VAT
In stock

Quantity Price Breaks

10+ $34.35
19+ $32.42
29+ $32.04
39+ $31.65
49+ $31.27
74+ $30.88
99+ $28.95
199+ $28.56
249+ $28.18
499+ $27.79
999+ $27.02
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NTN NUTR202/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
SKU: NUTR202/3AS-NTN

NTN NUTR202/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

$38.60 ex VAT
$38.60
ex VAT

Description

NTN NUTR Type Track Rollers: These track rollers are heavy-duty cam followers designed for maximum load capacity and durability in demanding industrial environments. Built with a full complement of cylindrical rollers and a thick-walled outer ring, these bearings offer exceptional resistance to shock loads and deformation. The NUTR series includes integral seals to retain lubrication and keep out contaminants, ensuring long service life and smooth operation. Ideal for applications such as conveyors, cam drives, guide systems, and heavy machinery.
Benefits: Heavy duty, long service life, smooth and reliable

Technical

d - Inside diameter = 15mm
D - Outside diameter = 35mm
C - Outer ring width = 18mm
F - Under roller diameter = 19mm
B - Bearing width = 19mm
e - Inlet diameter = 20mm
R - Track roller radius = 500mm
rs - Minimum fillet radius = 0.3mm
Bearing with/without cage = Without
Radial clearance class = CN
Precision class = P0
Cr - Dynamic load rating = 22.3 kN
C0r - Static load rating = 25.7 kN
Track load capacity = 3.2 kN
N - Grease lubrication limit speed = 5500 tr/min
Tmin - Minimum operating temperature = -20 Deg C
Tmax - Maximum operating temperature = +120 Deg C
