SKU: NTA613-TRA613

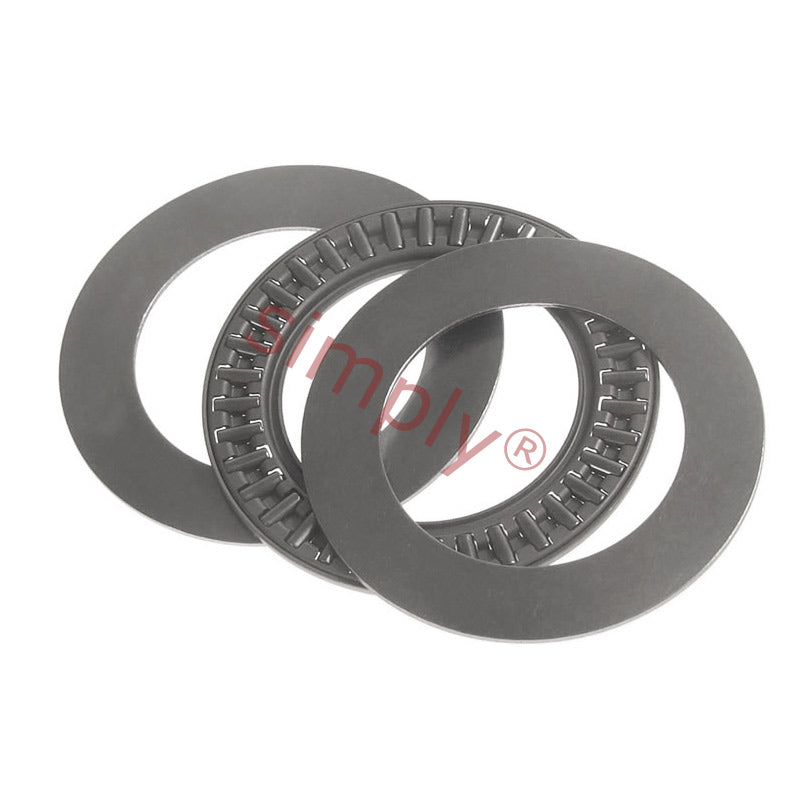

NTA613 Needle Roller Cage Thrust Assembly with 2 TRA613 Washers 0.375x0.813x0.1406 inch
- Regular price
- $14.94 ex VAT
- Sale price
- $14.94
- Regular price
-
Not in stock
Quantity Price Breaks
10
$13.30
19
$12.55
29
$12.40
39
$12.25
49
$12.10
74
$11.95
99
$11.21
199
$11.06
249
$10.91
499
$10.76
999
$10.46
SKU:
NTA613-TRA613
NTA613 Needle Roller Cage Thrust Assembly with 2 TRA613 Washers 0.375x0.813x0.1406 inch
- Regular price
- $14.94 ex VAT
- Sale price
- $14.94
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 0.375 inch |
| D | = | 0.813 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 0.46 inch |
| dw | = | 0.71 inch |
| Dynamic load | = | 60.5 kN |
| Static load | = | 14.32 kN |
| Limiting speed | = | 22000 rpm |
| Weight | = | 0.001816 kg |
| Washer | = | Dimensions |
| d | = | 0.375 inch |
| d1 | = | 0.812 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 0.372 inch |
| Pilot max | = | 0.375 inch |
| Dia to clear washer | = | 0.844 inch |
| Weight | = | 0.003 lbs |
