SKU: NTA3648-TRA3648

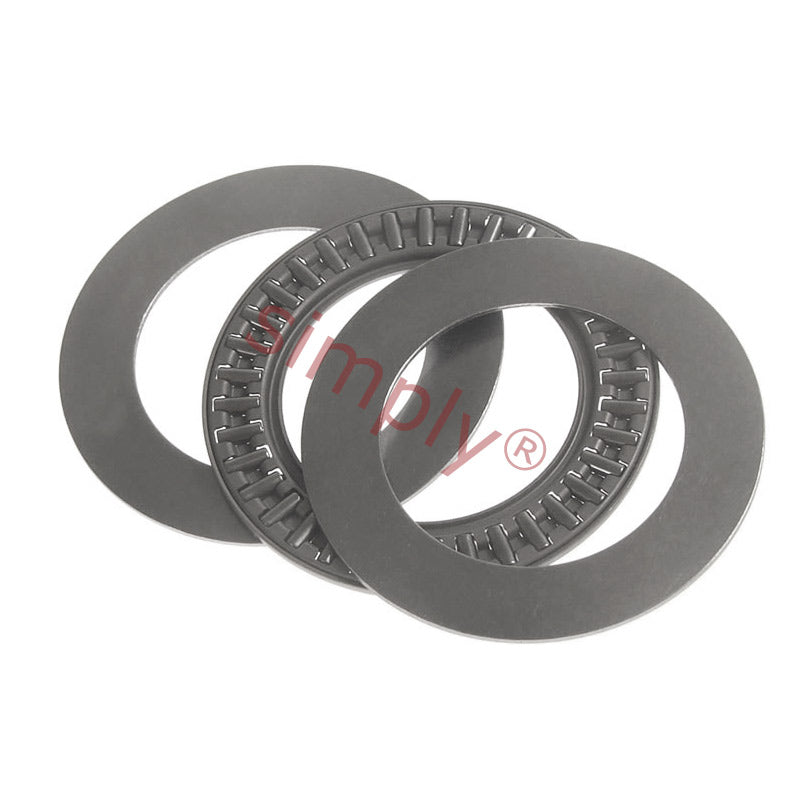

NTA3648 Needle Roller Cage Thrust Assembly with 2 TRA3648 Washers 2.25x3x0.1406 inch
- Regular price
- $20.46 ex VAT
- Sale price
- $20.46
- Regular price
-
Not in stock
Quantity Price Breaks
10
$18.21
19
$17.19
29
$16.98
39
$16.78
49
$16.57
74
$16.37
99
$15.35
199
$15.14
249
$14.94
499
$14.73
999
$14.32
SKU:
NTA3648-TRA3648
NTA3648 Needle Roller Cage Thrust Assembly with 2 TRA3648 Washers 2.25x3x0.1406 inch
- Regular price
- $20.46 ex VAT
- Sale price
- $20.46
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Technical
| d | = | 2.25 inch |
| D | = | 3 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 2.34 inch |
| dw | = | 2.82 inch |
| Dynamic load | = | 24.78 kN |
| Static load | = | 142.34 kN |
| Limiting speed | = | 5600 rpm |
| Weight | = | 0.017252 kg |
| Washer | = | Dimensions |
| d | = | 2.25 inch |
| d1 | = | 3 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 2.997 inch |
| Pilot max | = | 3.000 inch |
| Dia to clear washer | = | 3.781 inch |
| Weight | = | 0.034 lbs |
