SKU: NK17/16R-NTN

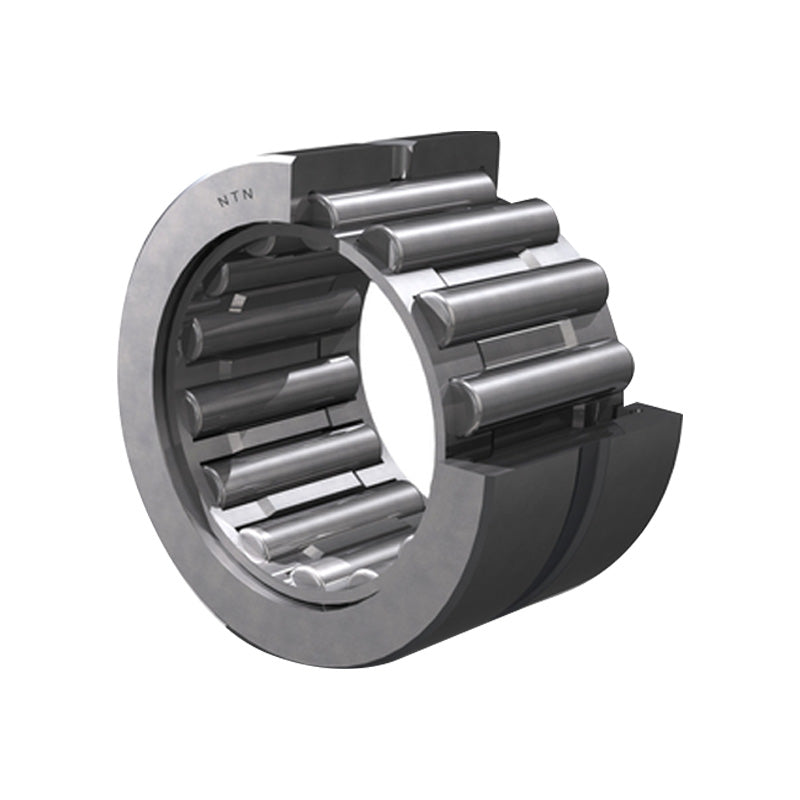

NTN NK17/16R Machined Needle Roller Bearing no Shaft Sleeve 17x25x16mm
- Regular price
- $13.32 ex VAT
- Sale price
- $13.32
- Regular price
-
In stock
Quantity Price Breaks
10+
$11.85
19+
$11.19
29+
$11.06
39+
$10.92
49+
$10.79
74+
$10.66
99+
$9.99
199+
$9.86
249+
$9.72
499+
$9.59
999+
$9.32
SKU:
NK17/16R-NTN
NTN NK17/16R Machined Needle Roller Bearing no Shaft Sleeve 17x25x16mm
- Regular price
- $13.32 ex VAT
- Sale price
- $13.32
- Regular price
-
Description
CIAH7HM5FO
Technical
| Fw - Under rollers diameter | = | 17mm |
| D - Outside diameter | = | 25mm |
| C - Width of bearing, drawn cup or outer ring | = | 16mm |
| rs - Minimum fillet radius | = | 0.3mm |
| Lubrication hole on outer ring? | = | Yes |
| k - Lubrication hole diameter | = | 2.5mm |
| Radial clearance class | = | CN |
| Precision class | = | P0 |
| Cr - Dynamic load rating | = | 12.1 kN |
| C0r - Static load rating | = | 15 kN |
| N - Grease lubrication limit speed | = | 15000 tr/min |
| N - Oil lubrication limit speed | = | 22000 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +120 Deg C |
| Da max - Outer ring maximum shoulder diameter | = | 23mm |
| ras max - Maximum shaft & | = | housing fillet radius |
| 0.3mm | = | N/A |
