SKU: NJ312-CDX

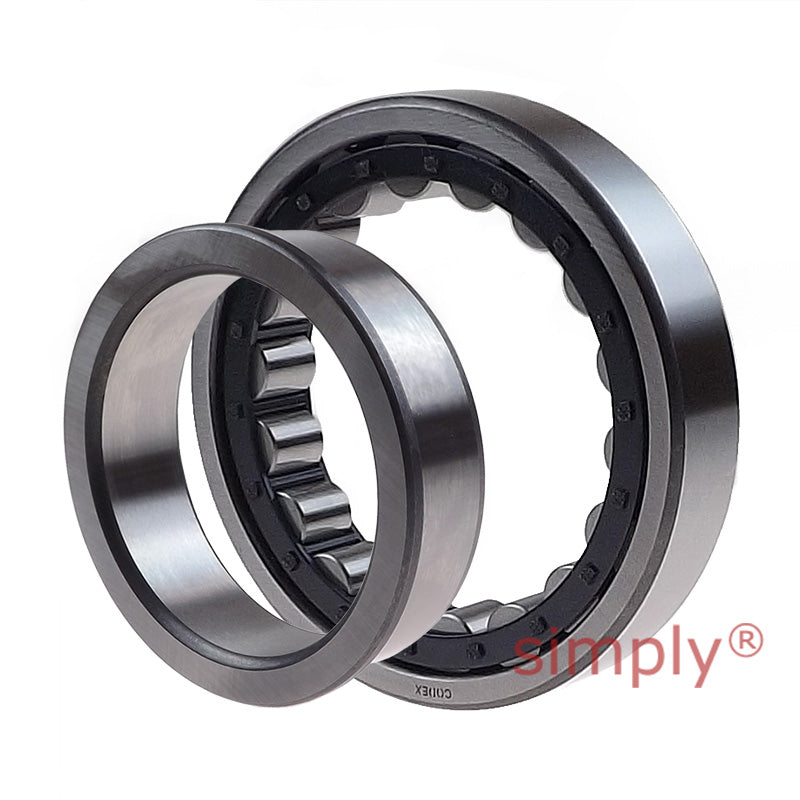

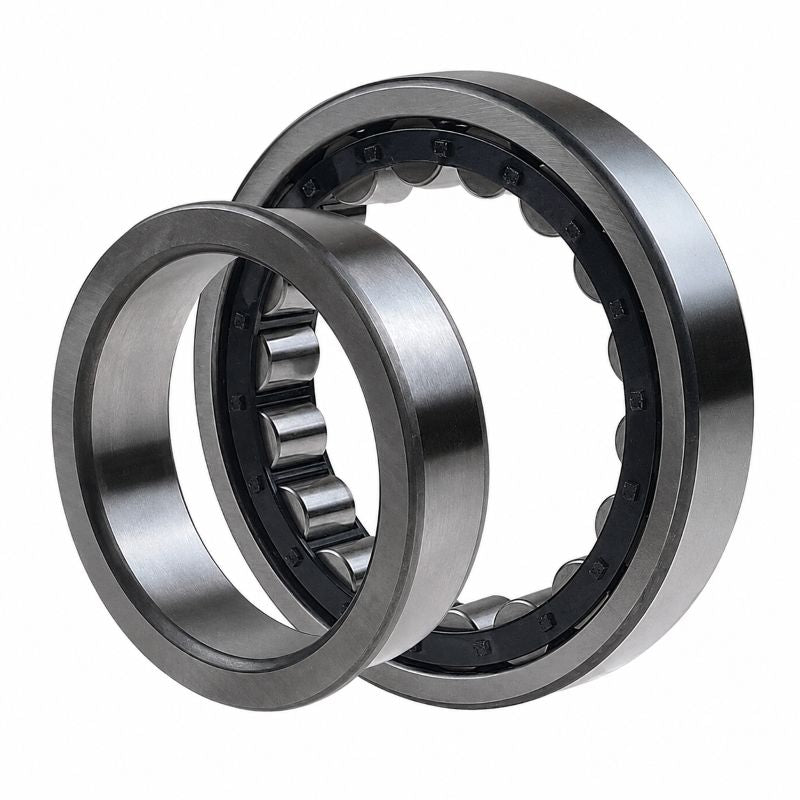

Codex NJ312 Single Row Cylindrical Roller Bearing 60x130x31mm
- Regular price
- $125.81 ex VAT
- Sale price
- $125.81
- Regular price
-
In stock
Quantity Price Breaks
10
$111.97
19
$105.68
29
$104.42
39
$103.16
49
$101.91
74
$100.65
99
$94.36
199
$93.10
249
$91.84
499
$90.58
999
$88.07
SKU:
NJ312-CDX
Codex NJ312 Single Row Cylindrical Roller Bearing 60x130x31mm
- Regular price
- $125.81 ex VAT
- Sale price
- $125.81
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 60mm |
| D | = | 130mm |
| B | = | 31mm |
| Dynamic load C | = | 173 kN |
| Static load Co | = | 160 kN |
| Fatigue load limit Pu | = | 20.8 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6700 rpm |
| Weight | = | 1.83 kg |
| Cage options | = | J.M.ML |
| d1 | = | 84.3mm |
| D1 | = | 110mm |
| F, E | = | 77mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 2.1mm |
| da min | = | 72mm |
| da max | = | 74mm |
| db min | = | 87mm |
| Da max | = | 118mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ312EC |
| Angle ring weight | = | 0.22kg |
| B1 | = | 9mm |
| B2 | = | 14.5mm |
