SKU: NJ311-CDX

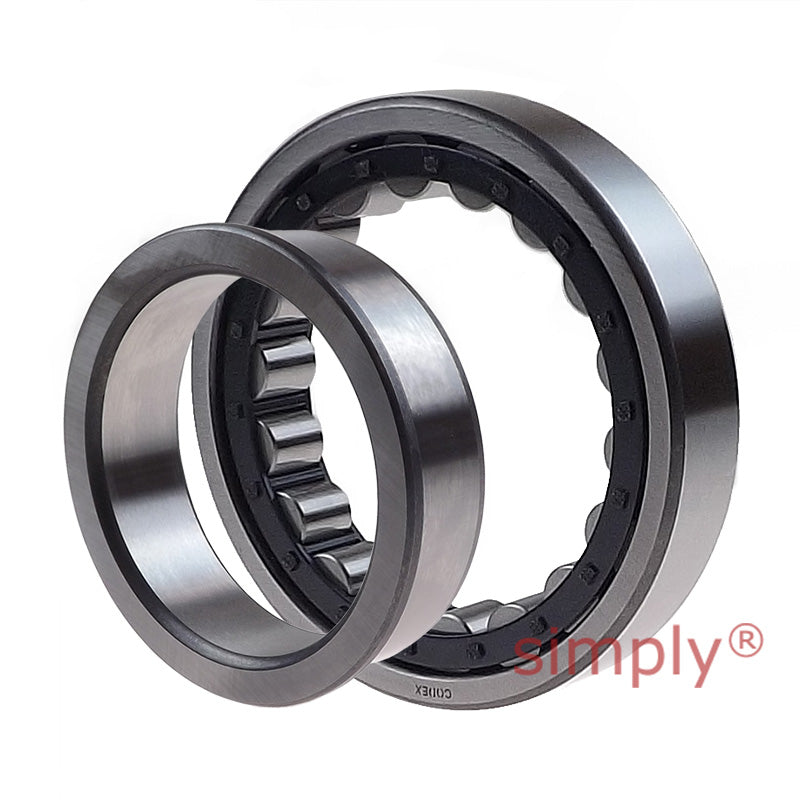

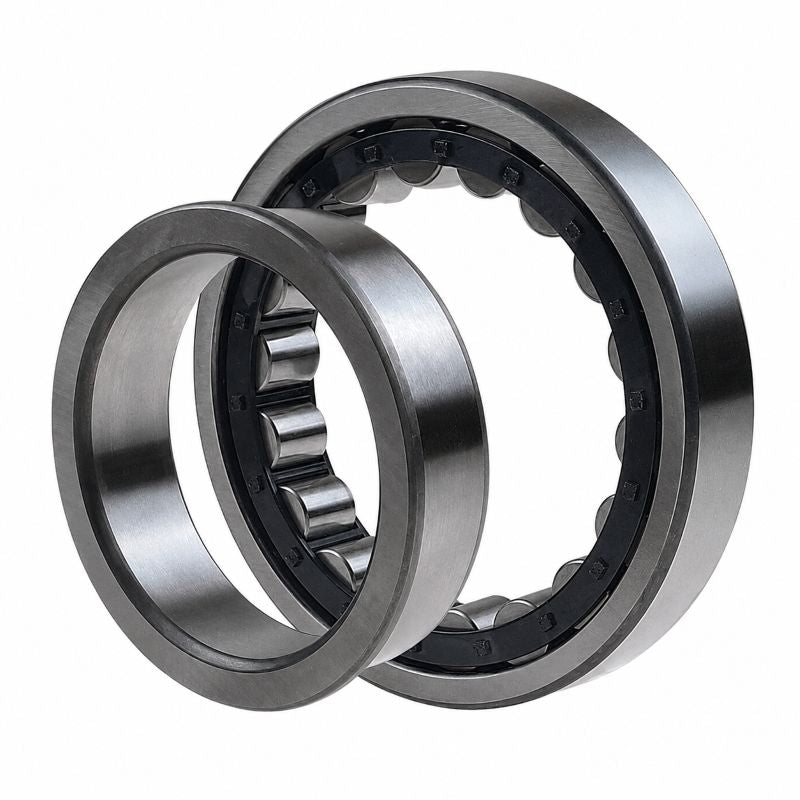

Codex NJ311 Single Row Cylindrical Roller Bearing 55x120x29mm
- Regular price
- $102.82 ex VAT
- Sale price
- $102.82
- Regular price
-
In stock
Quantity Price Breaks
10
$91.51
19
$86.37
29
$85.34
39
$84.31
49
$83.28
74
$82.26
99
$77.12
199
$76.09
249
$75.06
499
$74.03
999
$71.97
SKU:
NJ311-CDX
Codex NJ311 Single Row Cylindrical Roller Bearing 55x120x29mm
- Regular price
- $102.82 ex VAT
- Sale price
- $102.82
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 55mm |
| D | = | 120mm |
| B | = | 29mm |
| Dynamic load C | = | 156 kN |
| Static load Co | = | 143 kN |
| Fatigue load limit Pu | = | 18.6 kN |
| Reference speed | = | 6000 rpm |
| Limiting speed | = | 7000 rpm |
| Weight | = | 1.5 kg |
| Cage options | = | J.M.ML |
| d1 | = | 77.5mm |
| D1 | = | 101mm |
| F, E | = | 70.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 2mm |
| da min | = | 66mm |
| da max | = | 68mm |
| db min | = | 80mm |
| Da max | = | 109mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ311EC |
| Angle ring weight | = | 0.19kg |
| B1 | = | 9mm |
| B2 | = | 14mm |
