SKU: NJ2316-CDX

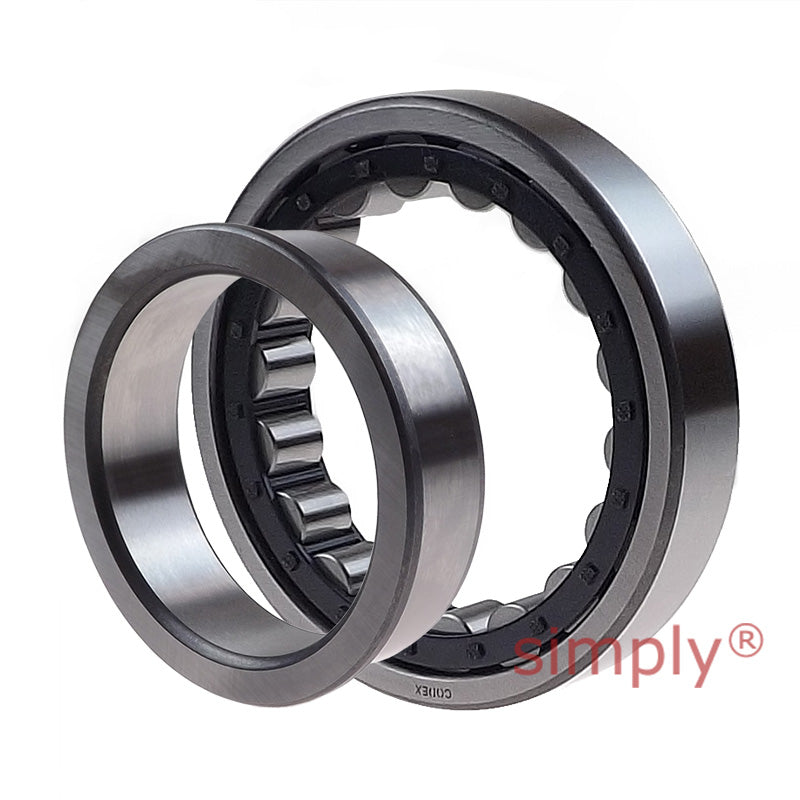

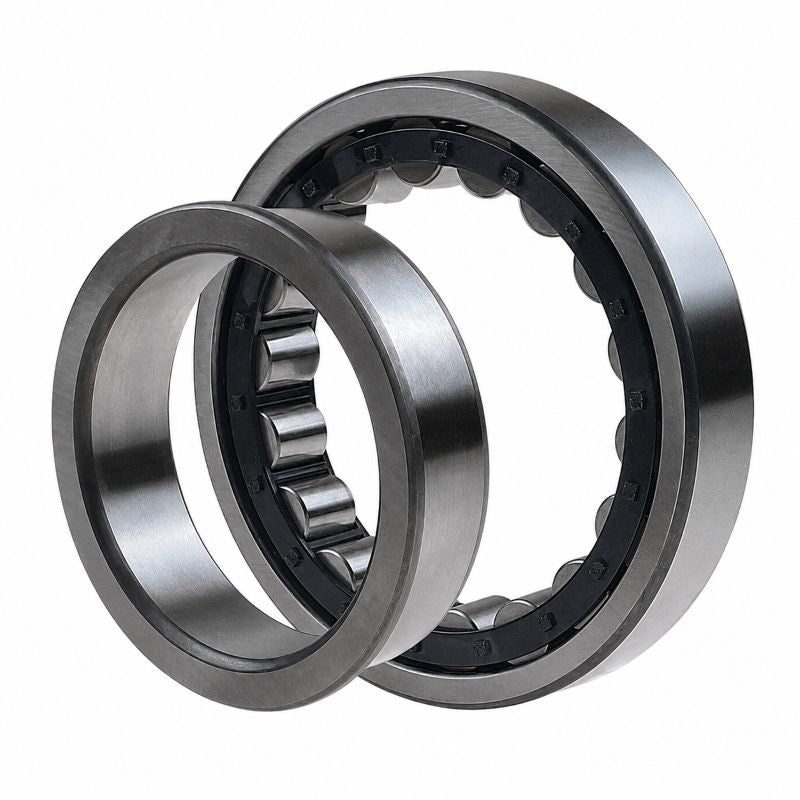

Codex NJ2316 Single Row Cylindrical Roller Bearing 80x170x58mm
- Regular price
- $344.25 ex VAT
- Sale price
- $344.25
- Regular price
-
In stock
Quantity Price Breaks
10
$306.38
19
$289.17
29
$285.73
39
$282.29
49
$278.84
74
$275.40
99
$258.19
199
$254.75
249
$251.30
499
$247.86
999
$240.98
SKU:
NJ2316-CDX
Codex NJ2316 Single Row Cylindrical Roller Bearing 80x170x58mm
- Regular price
- $344.25 ex VAT
- Sale price
- $344.25
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 80mm |
| D | = | 170mm |
| B | = | 58mm |
| Dynamic load C | = | 415 kN |
| Static load Co | = | 440 kN |
| Fatigue load limit Pu | = | 55 kN |
| Reference speed | = | 4300 rpm |
| Limiting speed | = | 5000 rpm |
| Weight | = | 5.95 kg |
| Cage options | = | M.ML |
| d1 | = | 110mm |
| D1 | = | 144mm |
| F, E | = | 101mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 5.1mm |
| da min | = | 92mm |
| da max | = | 98mm |
| db min | = | 113mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2316EC |
| Angle ring weight | = | 0.48kg |
| B1 | = | 11mm |
| B2 | = | 20mm |
