SKU: NJ2315-CDX

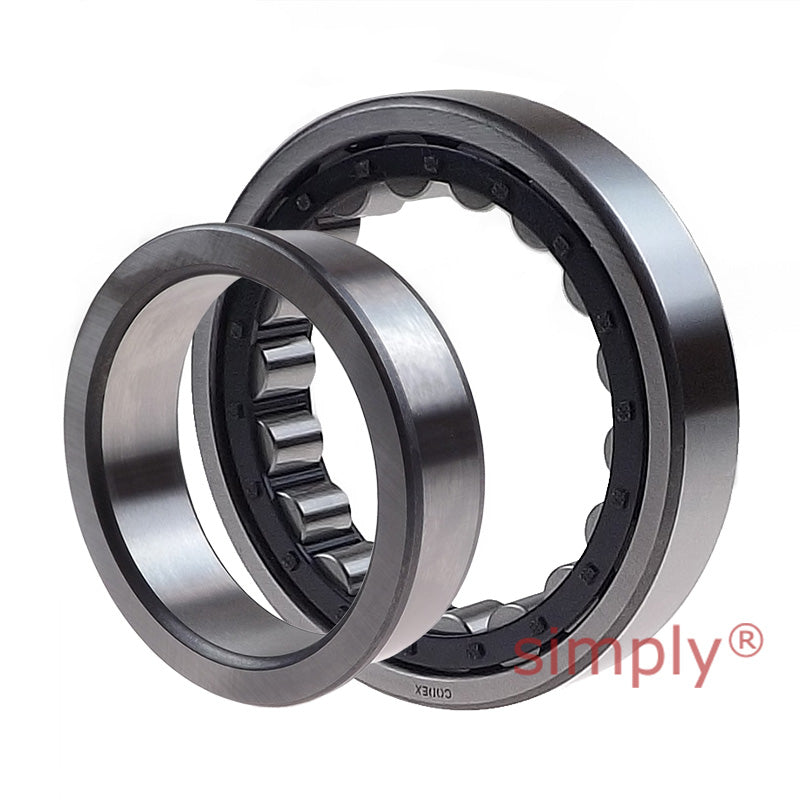

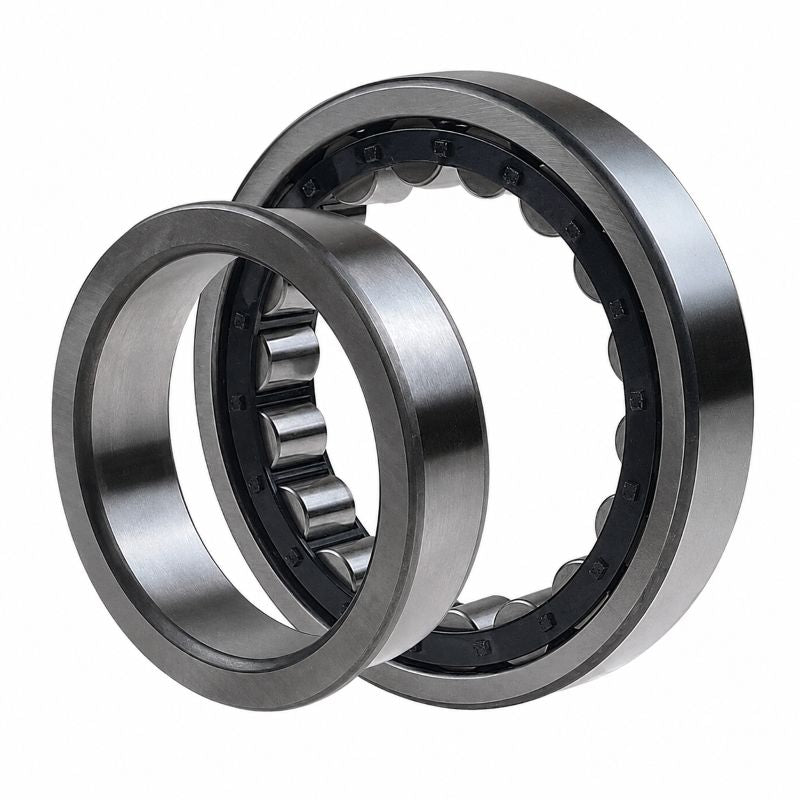

Codex NJ2315 Single Row Cylindrical Roller Bearing 75x160x55mm
- Regular price
- $319.13 ex VAT
- Sale price
- $319.13
- Regular price
-
In stock
Quantity Price Breaks
10
$284.03
19
$268.07
29
$264.88
39
$261.69
49
$258.50
74
$255.30
99
$239.35
199
$236.16
249
$232.96
499
$229.77
999
$223.39
SKU:
NJ2315-CDX
Codex NJ2315 Single Row Cylindrical Roller Bearing 75x160x55mm
- Regular price
- $319.13 ex VAT
- Sale price
- $319.13
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 75mm |
| D | = | 160mm |
| B | = | 55mm |
| Dynamic load C | = | 380 kN |
| Static load Co | = | 400 kN |
| Fatigue load limit Pu | = | 50 kN |
| Reference speed | = | 4500 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 5 kg |
| Cage options | = | ML |
| d1 | = | 104mm |
| D1 | = | 136mm |
| F, E | = | 95mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 4.8mm |
| da min | = | 87mm |
| da max | = | 92mm |
| db min | = | 107mm |
| Da max | = | 148mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2315EC |
| Angle ring weight | = | 0.42kg |
| B1 | = | 11mm |
| B2 | = | 19.5mm |
