SKU: NJ2312-CDX

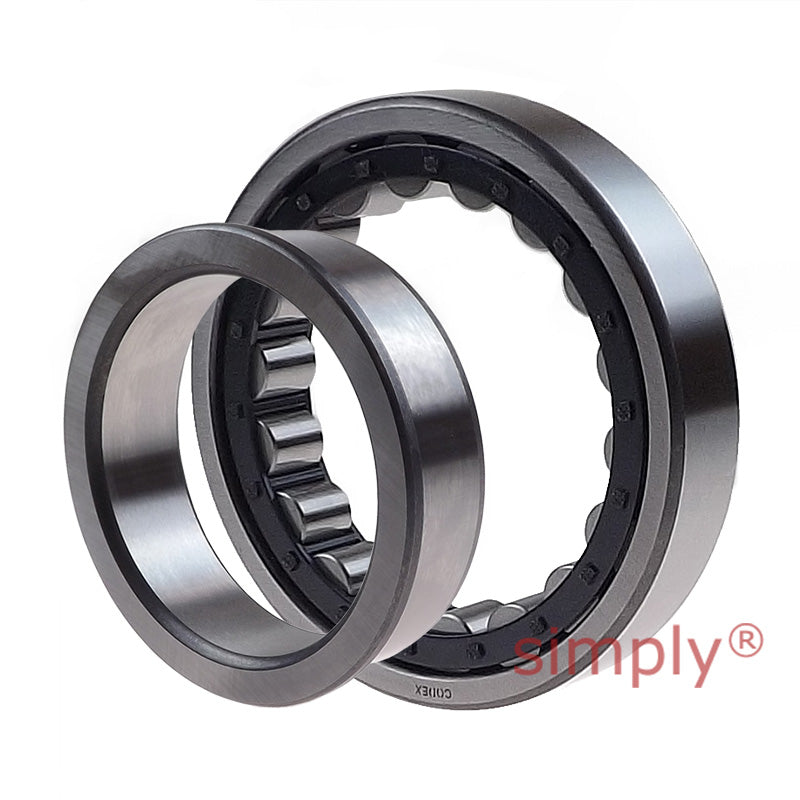

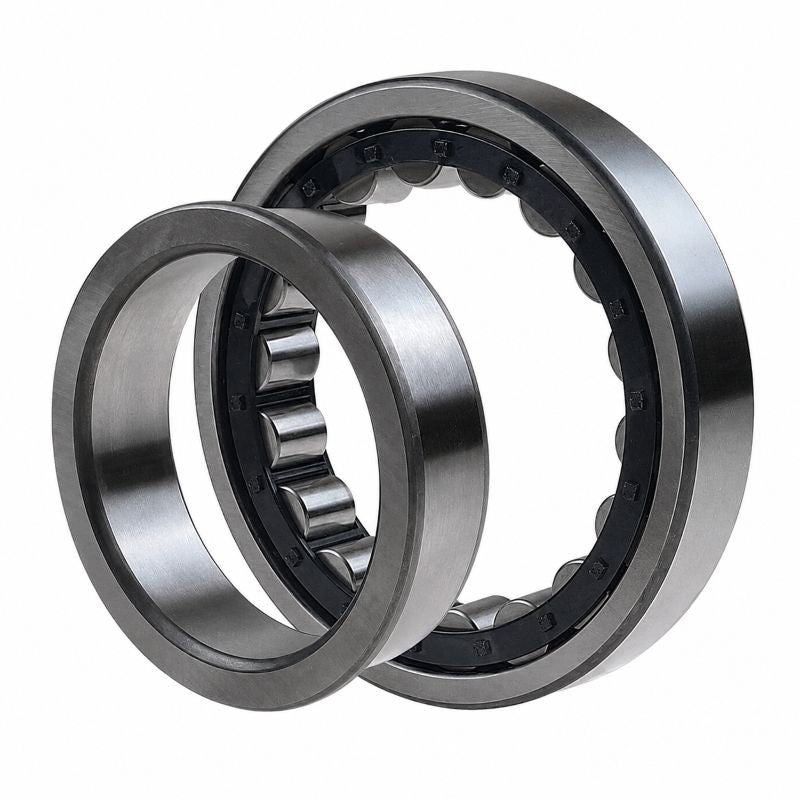

Codex NJ2312 Single Row Cylindrical Roller Bearing 60x130x46mm
- Regular price
- $168.94 ex VAT
- Sale price
- $168.94
- Regular price
-
In stock
Quantity Price Breaks
10
$150.36
19
$141.91
29
$140.22
39
$138.53
49
$136.84
74
$135.15
99
$126.71
199
$125.02
249
$123.33
499
$121.64
999
$118.26
SKU:
NJ2312-CDX
Codex NJ2312 Single Row Cylindrical Roller Bearing 60x130x46mm
- Regular price
- $168.94 ex VAT
- Sale price
- $168.94
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 60mm |
| D | = | 130mm |
| B | = | 46mm |
| Dynamic load C | = | 260 kN |
| Static load Co | = | 265 kN |
| Fatigue load limit Pu | = | 34.5 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6700 rpm |
| Weight | = | 2.8 kg |
| Cage options | = | ML |
| d1 | = | 84.3mm |
| D1 | = | 110mm |
| F, E | = | 77mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 3.6mm |
| da min | = | 72mm |
| da max | = | 74mm |
| db min | = | 87mm |
| Da max | = | 118mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2312EC |
| Angle ring weight | = | 0.24kg |
| B1 | = | 9mm |
| B2 | = | 16mm |
