NTN NATR15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

SKU: NATR15LL/3AS-NTN

NTN NATR15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

$35.48 ex VAT
$35.48
ex VAT
In stock

Quantity Price Breaks

10+ $31.58
19+ $29.80
29+ $29.45
39+ $29.09
49+ $28.74
74+ $28.38
99+ $26.61
199+ $26.26
249+ $25.90
499+ $25.55
999+ $24.84
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NTN NATR15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
SKU: NATR15LL/3AS-NTN

NTN NATR15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

$35.48 ex VAT
$35.48
ex VAT

Description

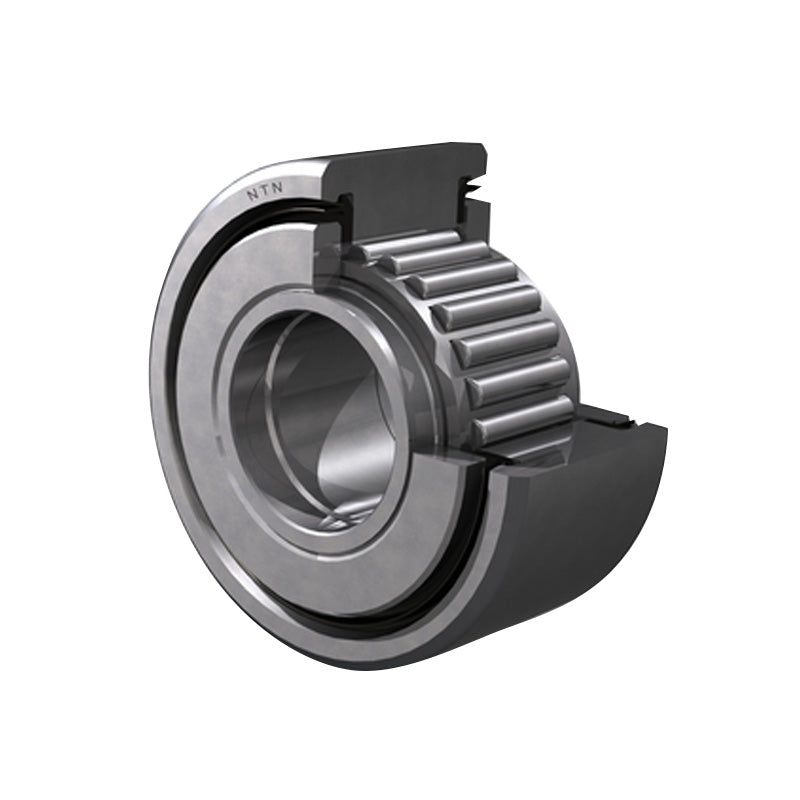

NTN NATR Type Track Rollers: These track rollers are high-performance, double-shielded cam followers designed to deliver smooth, efficient motion and long-lasting reliability. Featuring a thick-walled outer ring and a cage-guided needle roller bearing assembly, these rollers offer excellent load-carrying capacity and precise rotational performance. Their robust construction ensures stability under heavy loads, while the protective seals keep out contaminants for extended bearing life. Perfect for use in conveyors, cam drives, linear guidance systems, and material handling equipment.
Benefits: High strength and stability, long service life, maintenance friendly

Technical

d - Inside diameter = 15mm
D - Outside diameter = 35mm
C - Outer ring width = 18mm
F - Under roller diameter = 20mm
B - Bearing width = 19mm
e - Inlet diameter = 27mm
R - Track roller radius = 500mm
Bearing with/without cage = With
Radial clearance class = CN
Precision class = P0
Cr - Dynamic load rating = 13.3 kN
C0r - Static load rating = 20.8 kN
Track load capacity = 3.2 kN
N - Grease lubrication limit speed = 7500 tr/min
Tmin - Minimum operating temperature = -20 Deg C
Tmax - Maximum operating temperature = +100 Deg C
