SKU: MPL-M14-MB

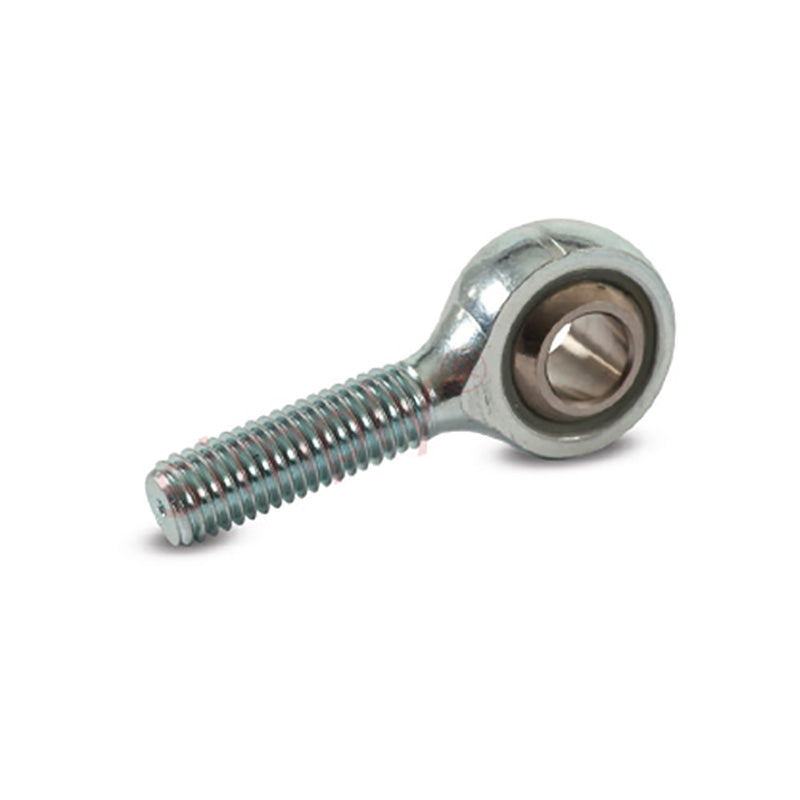

Branded MPL-M14 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M14x2 Thread - Allow 7-10 Days
- Regular price
- $22.27 ex VAT
- Sale price
- $22.27
- Regular price
-
Not in stock
Quantity Price Breaks
10
$19.82
19
$18.71
29
$18.48
39
$18.26
49
$18.04
74
$17.82
99
$16.70
199
$16.48
249
$16.26
499
$16.03
999
$15.59
SKU:
MPL-M14-MB
Branded MPL-M14 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M14x2 Thread - Allow 7-10 Days
- Regular price
- $22.27 ex VAT
- Sale price
- $22.27
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 14mm |
| Thread | = | M14x2 |
| W | = | 19mm |
| H | = | 13.5mm |
| D | = | 34mm |
| L1 | = | 60mm |
| L2 | = | 36mm |
| O | = | 16.8mm |
| Static load | = | 28950 N |
