SKU: MPL-M10C-MB

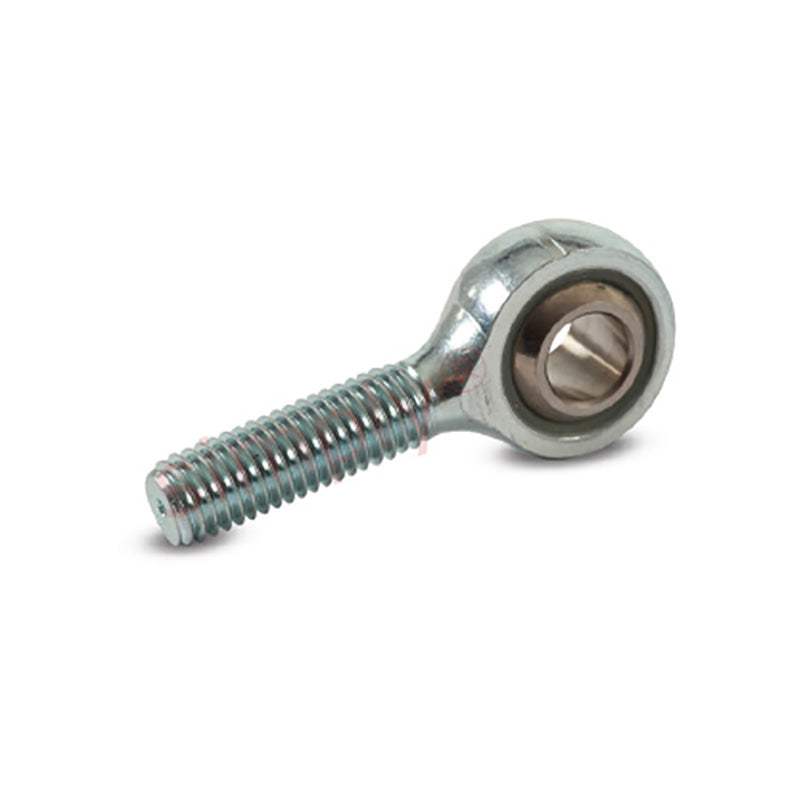

Branded MPL-M10C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.25 Thread - Allow 7-10 Days
- Regular price
- $15.06 ex VAT
- Sale price
- $15.06
- Regular price
-
In stock
Quantity Price Breaks
10
$13.40
19
$12.65
29
$12.50
39
$12.35
49
$12.20
74
$12.05
99
$11.30
199
$11.14
249
$10.99
499
$10.84
999
$10.54
SKU:
MPL-M10C-MB
Branded MPL-M10C Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.25 Thread - Allow 7-10 Days
- Regular price
- $15.06 ex VAT
- Sale price
- $15.06
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 10mm |
| Thread | = | M10x1.25 |
| W | = | 14mm |
| H | = | 10.5mm |
| D | = | 26mm |
| L1 | = | 48mm |
| L2 | = | 29mm |
| O | = | 12.9mm |
| Static load | = | 16960 N |
