SKU: MPL-16-12F-MB

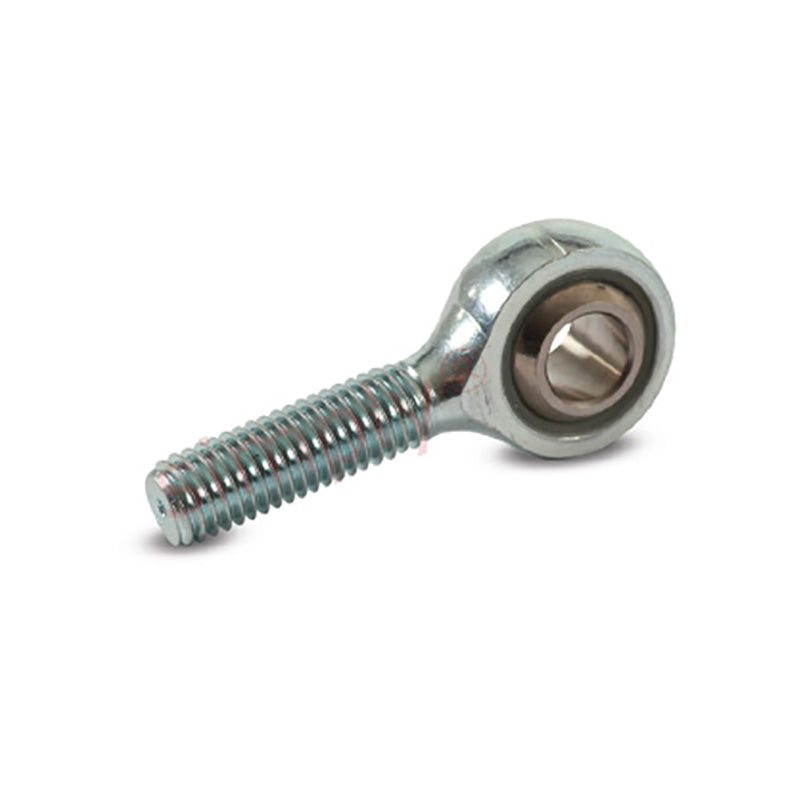

Branded MPL-16-12F Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1 BSF Thread - Allow 7-10 Days
- Regular price
- $142.87 ex VAT
- Sale price
- $142.87
- Regular price
-
Not in stock
Quantity Price Breaks
10
$127.15
19
$120.01
29
$118.58
39
$117.15
49
$115.72
74
$114.30
99
$107.15
199
$105.72
249
$104.30
499
$102.87
999
$100.01
SKU:
MPL-16-12F-MB
Branded MPL-16-12F Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1 BSF Thread - Allow 7-10 Days
- Regular price
- $142.87 ex VAT
- Sale price
- $142.87
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 3/4 inch |
| Thread | = | 1 BSF |
| W | = | 1.375 inch |
| H | = | 1 inch |
| D | = | 2.75 inch |
| L1 | = | 4.125 inch |
| L2 | = | 2.125 inch |
| O | = | 1.021 inch |
| Static load | = | 65200 N |
