SKU: MPL-08-7F-MB

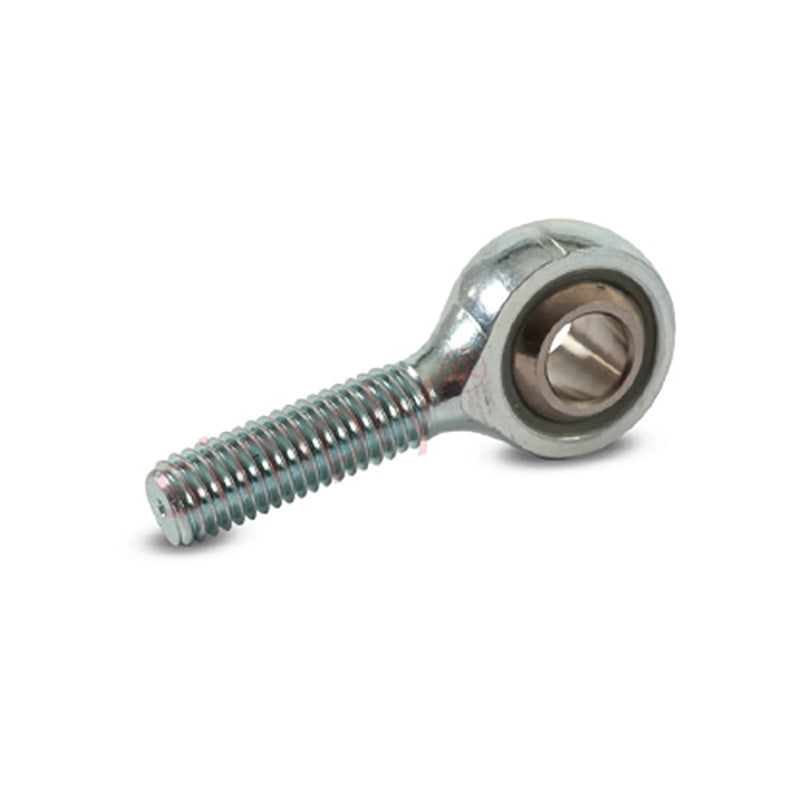

Branded MPL-08-7F Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread - Allow 7-10 Days
- Regular price
- $55.21 ex VAT
- Sale price
- $55.21
- Regular price
-
Not in stock
Quantity Price Breaks
10
$49.14
19
$46.38
29
$45.82
39
$45.27
49
$44.72
74
$44.17
99
$41.41
199
$40.86
249
$40.30
499
$39.75
999
$38.65
SKU:
MPL-08-7F-MB
Branded MPL-08-7F Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread - Allow 7-10 Days
- Regular price
- $55.21 ex VAT
- Sale price
- $55.21
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 7/16 inch |
| Thread | = | 1/2 BSF |
| W | = | 0.652 inch |
| H | = | 0.5 inch |
| D | = | 1.312 inch |
| L1 | = | 2.438 inch |
| L2 | = | 1.5 inch |
| O | = | 0.7 inch |
| Static load | = | 28900 N |
