SKU: MP-04-3-MB

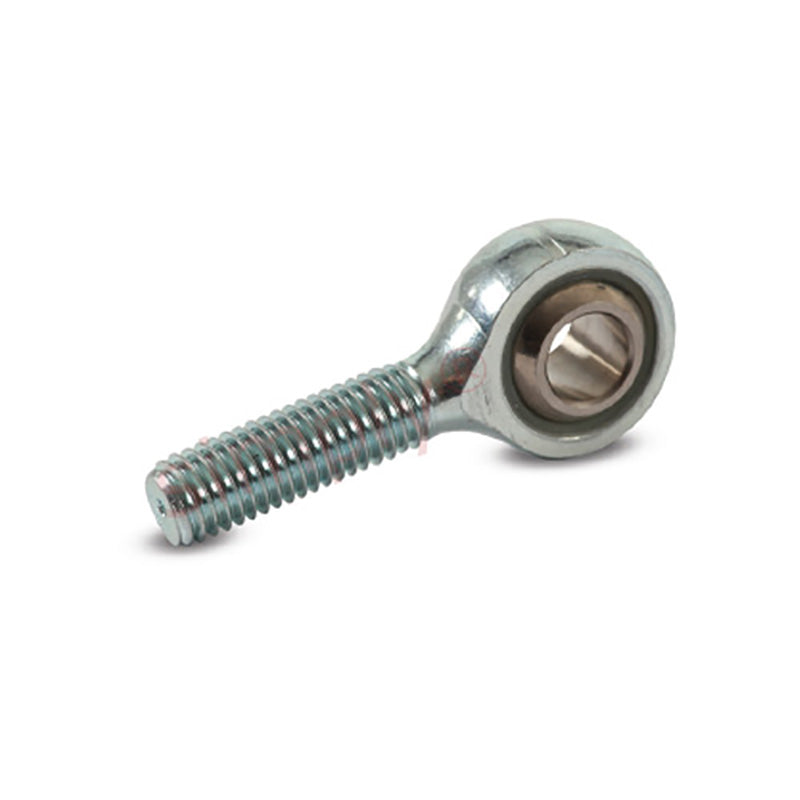

Branded MP-04-3 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/4 UNF Thread - Allow 7-10 Days
- Regular price
- $26.00 ex VAT
- Sale price
- $26.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
$23.14
19
$21.84
29
$21.58
39
$21.32
49
$21.06
74
$20.80
99
$19.50
199
$19.24
249
$18.98
499
$18.72
999
$18.20
SKU:
MP-04-3-MB
Branded MP-04-3 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1/4 UNF Thread - Allow 7-10 Days
- Regular price
- $26.00 ex VAT
- Sale price
- $26.00
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 3/16 inch |
| Thread | = | 1/4 UNF |
| W | = | 0.375 inch |
| H | = | 0.281 inch |
| D | = | 0.75 inch |
| L1 | = | 1.562 inch |
| L2 | = | 1 inch |
| O | = | 0.354 inch |
| Static load | = | 8450 N |
