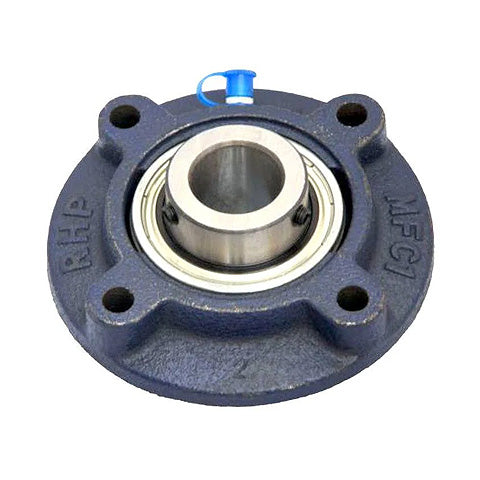

RHP MFC85 Four Bolt Round Cast Iron Flanged Bearing Unit and 85mm Insert

SKU: MFC85-RHP

RHP MFC85 Four Bolt Round Cast Iron Flanged Bearing Unit and 85mm Insert

$675.23 ex VAT
$675.23
ex VAT
In stock

Quantity Price Breaks

10+ $600.95
19+ $567.19
29+ $560.44
39+ $553.69
49+ $546.94
74+ $540.18
99+ $506.42
199+ $499.67
249+ $492.92
499+ $486.17
999+ $472.66
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP MFC85 Four Bolt Round Cast Iron Flanged Bearing Unit and 85mm Insert
SKU: MFC85-RHP

RHP MFC85 Four Bolt Round Cast Iron Flanged Bearing Unit and 85mm Insert

$675.23 ex VAT
$675.23
ex VAT

Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

Technical

Bore = 85mm
L = 260.4mm
H = 187.32mm
J = 219.08mm
G = 20mm
A1 = 67.46mm
A4 = 29.4mm
A5 = 12.7mm
B = 96.04mm
s = 39.73mm
d1 = 111.66mm
Dynamic load = 96000 N
Static load = 71500 N
Rec max speed = 1900 rpm
Weight = 9.8 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1090-85G+insonly"
> = 1090-85G Click Here<
/a> =
Casting group = 10
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
