SKU: MFC65-RHP

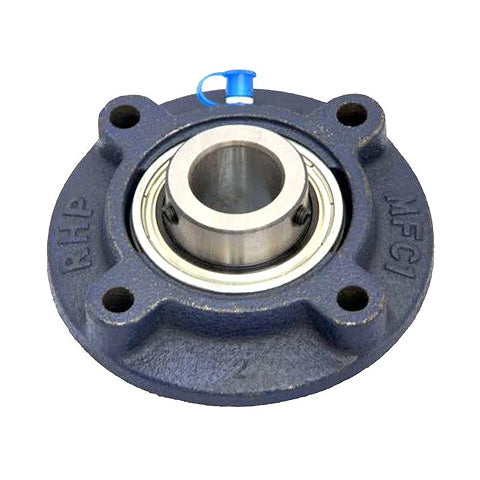

RHP MFC65 Four Bolt Round Cast Iron Flanged Bearing Unit and 65mm Insert
- Regular price
- $331.90 ex VAT
- Sale price
- $331.90
- Regular price
-
In stock
Quantity Price Breaks
10+
$295.39
19+
$278.80
29+
$275.48
39+
$272.16
49+
$268.84
74+
$265.52
99+
$248.93
199+
$245.61
249+
$242.29
499+
$238.97
999+
$232.33
SKU:
MFC65-RHP
RHP MFC65 Four Bolt Round Cast Iron Flanged Bearing Unit and 65mm Insert
- Regular price
- $331.90 ex VAT
- Sale price
- $331.90
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 65mm |
| L | = | 222.2mm |
| H | = | 161.92mm |
| J | = | 190.5mm |
| G | = | 16mm |
| A1 | = | 50.8mm |
| A4 | = | 21mm |
| A5 | = | 12.7mm |
| B | = | 77.77mm |
| s | = | 33.37mm |
| d1 | = | 92mm |
| Dynamic load | = | 66000 N |
| Static load | = | 49500 N |
| Rec max speed | = | 2300 rpm |
| Weight | = | 5.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1075-65G+insonly" |
| > | = | 1075-65G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
