SKU: MFC30-RHP
RHP MFC30 Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
- Regular price
- $109.27 ex VAT
- Sale price
- $109.27
- Regular price
-
In stock
Quantity Price Breaks
10+
$97.25
19+
$91.79
29+
$90.69
39+
$89.60
49+
$88.51
74+
$87.42
99+
$81.95
199+
$80.86
249+
$79.77
499+
$78.67
999+
$76.49
SKU:
MFC30-RHP
RHP MFC30 Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
- Regular price
- $109.27 ex VAT
- Sale price
- $109.27
- Regular price
-
Description
|

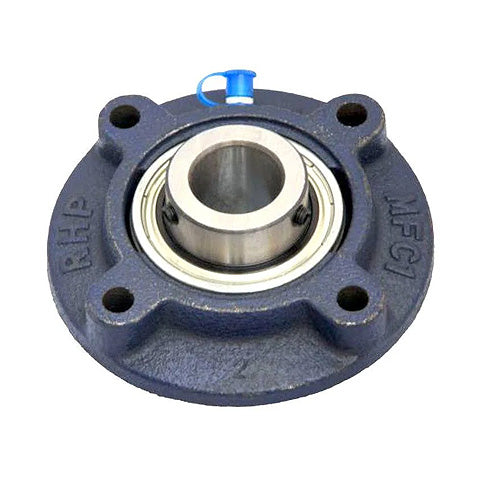

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 30mm |
| L | = | 127mm |
| H | = | 85.72mm |
| J | = | 104.78mm |
| G | = | 10mm |
| A1 | = | 33.32mm |
| A4 | = | 19mm |
| A5 | = | 6.4mm |
| B | = | 42.88mm |
| s | = | 17.53mm |
| d1 | = | 46.69mm |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-30G+insonly" |
| > | = | 1035-30G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
