Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

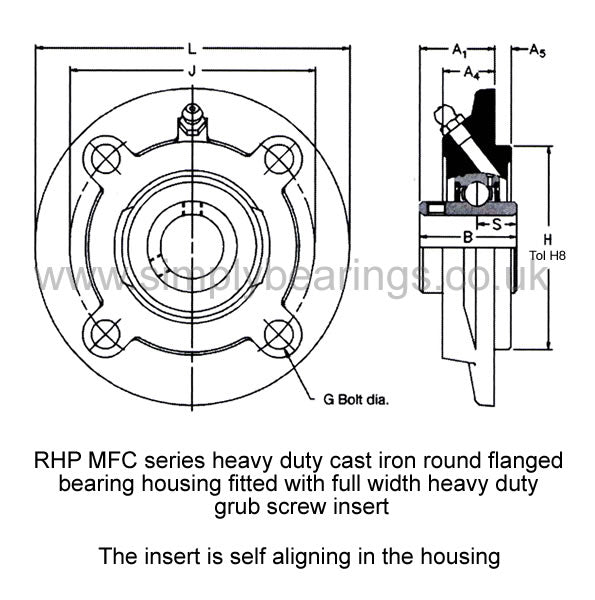

Technical

Bore = 25mm
L = 111.1mm
H = 76.2mm
J = 92.08mm
G = 8mm
A1 = 33.32mm
A4 = 21mm
A5 = 6.4mm
B = 38.1mm
s = 15.93mm
d1 = 40mm
Dynamic load = 19500 N
Static load = 11300 N
Rec max speed = 5300 rpm
Weight = 1.4 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1030-25G+insonly"
> = 1030-25G Click Here<
/a> =
Casting group = 1
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
