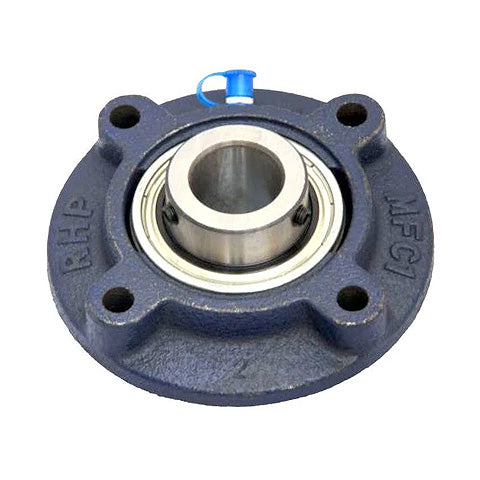

RHP MFC1-3/8 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/8 inch Insert

SKU: MFC1.3/8-RHP

RHP MFC1-3/8 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/8 inch Insert

$129.45 ex VAT
$129.45
ex VAT
In stock

Quantity Price Breaks

10+ $115.21
19+ $108.74
29+ $107.44
39+ $106.15
49+ $104.85
74+ $103.56
99+ $97.09
199+ $95.79
249+ $94.50
499+ $93.20
999+ $90.62
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP MFC1-3/8 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/8 inch Insert
SKU: MFC1.3/8-RHP

RHP MFC1-3/8 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/8 inch Insert

$129.45 ex VAT
$129.45
ex VAT

Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

Technical

Bore = 1-3/8 inch
L = 5.252 inch
H = 3.625 inch
J = 4.375 inch
G = 0.375 inch
A1 = 1.5 inch
A4 = 0.748 inch
A5 = 0.252 inch
B = 1.938 inch
s = 0.752 inch
d1 = 2.075 inch
Dynamic load = 32500 N
Static load = 19900 N
Rec max speed = 4000 rpm
Weight = 1.9 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1040-1-3/8G+insonly"
> = 1040-1-3/8G Click Here<
/a> =
Casting group = 3
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
