SKU: M-ASFB204-NTN

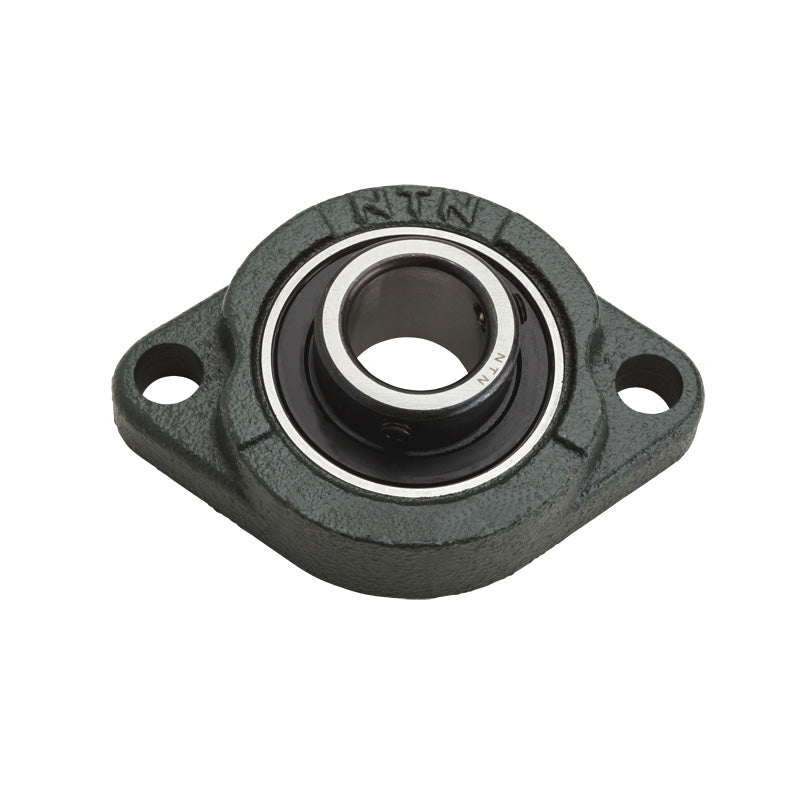

NTN M-ASFB204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
- Regular price
- $30.74 ex VAT
- Sale price
- $30.74
- Regular price
-
In stock
Quantity Price Breaks
10+
$27.36
19+
$25.82
29+
$25.51
39+
$25.21
49+
$24.90
74+
$24.59
99+
$23.06
199+
$22.75
249+
$22.44
499+
$22.13
999+
$21.52
SKU:
M-ASFB204-NTN
NTN M-ASFB204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
- Regular price
- $30.74 ex VAT
- Sale price
- $30.74
- Regular price
-
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

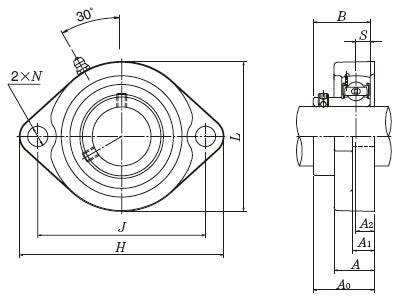

Technical
| Shaft diameter | = | 20mm |
| H | = | 90mm |
| J | = | 71.5mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 11mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 11mm | |
| A | = | 20mm |
| N | = | 10mm |
| L | = | 61mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 29mm | |
| B | = | 25mm |
| S | = | 7mm |
| Fixing bolt | = | M8 |
| Mass | = | 0.3 kg |
