SKU: KSO50-PP-INA

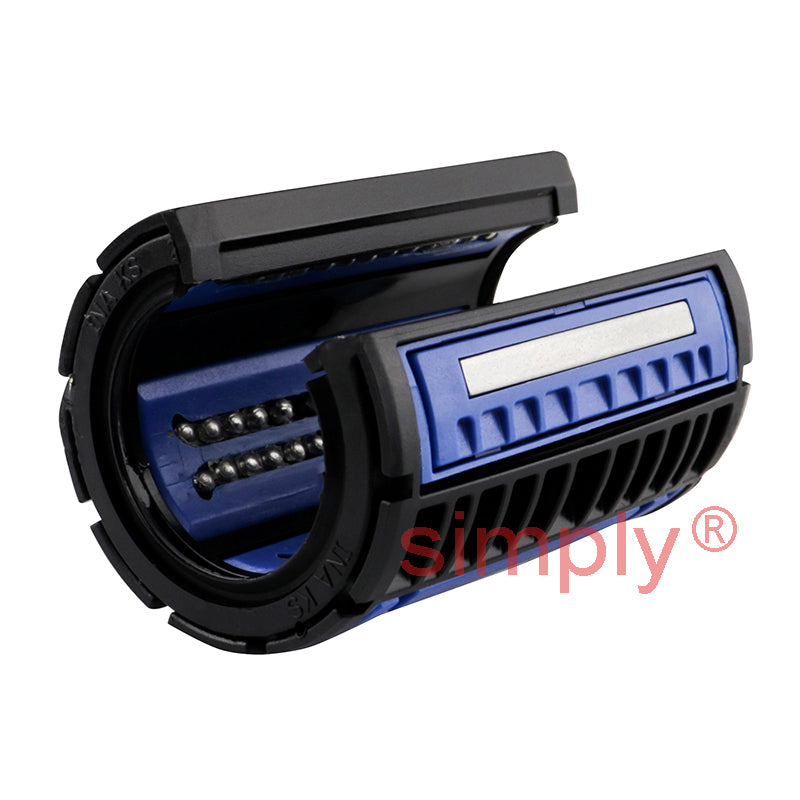

INA KSO50PP Open Self Aligning Linear Ball Bushing with Contact Seals 50x75x100mm
- Regular price
- $276.04 ex VAT
- Sale price
- $276.04
- Regular price
-
In stock
Quantity Price Breaks
10+
$245.68
19+
$231.87
29+
$229.11
39+
$226.35
49+
$223.59
74+
$220.83
99+
$207.03
199+
$204.27
249+
$201.51
499+
$198.75
999+
$193.23
SKU:
KSO50-PP-INA
INA KSO50PP Open Self Aligning Linear Ball Bushing with Contact Seals 50x75x100mm
- Regular price
- $276.04 ex VAT
- Sale price
- $276.04
- Regular price
-
Description
|
INA KSO..-PP Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KSO linear ball bearings can compensate misalignment of up to ±40 deg. This bearing has a segment cutout and is intended for supported shafts. The bearings are sealed on both sides with lip seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Compensates misalignments, can be relubricated |
Technical

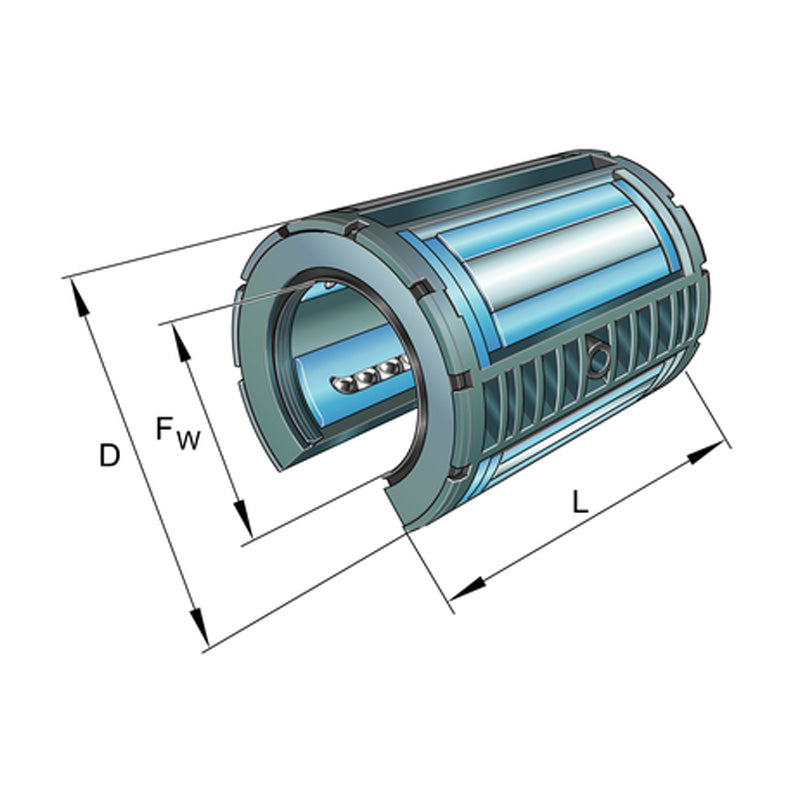

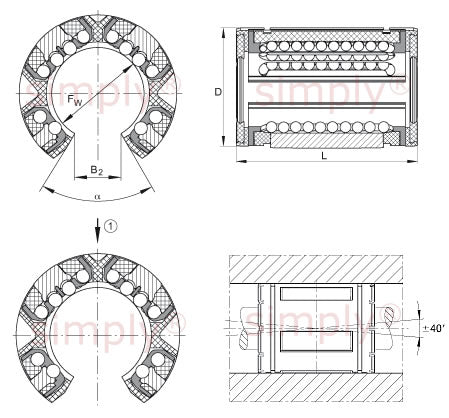

| Fw | = | 50mm |
| D | = | 75mm |
| L | = | 100mm |
| Number of rows of ball | = | 6 |
| A10 | = | 2.5mm |
| B2 | = | 22.7mm |
| N1 | = | 4.5mm |
| N4 | = | 5mm |
| & | = | alpha |
| = | 54& | |
| deg | = | |
| Mass | = | 0.454 kg |
| Basic dynamic load rating C max | = | 15100 N |
| Basic static load rating C0 max | = | 13900 N |
