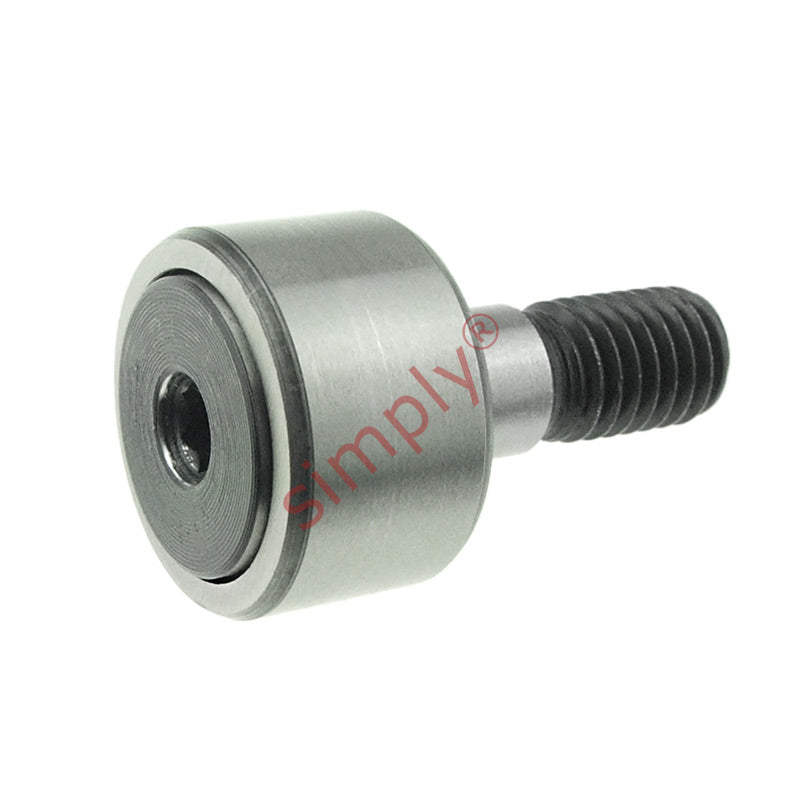

IKO KRV62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
New

SKU: KRV62PPA-MB-IKO

IKO KRV62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread

$134.24 ex VAT
$134.24
ex VAT
In stock

Quantity Price Breaks

5+ $132.90
10+ $127.53
20+ $124.84
50+ $120.82
100+ $118.13
500+ $111.42
1000+ $93.97
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO KRV62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
SKU: KRV62PPA-MB-IKO

IKO KRV62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread

$134.24 ex VAT
$134.24
ex VAT

Description

KRV-PP Series Crowned Cam Followers: These cam followers incorporate a full complement needle roller assembly allowing for maximum load support. Manufactured with a needle roller design that permits a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed-on side washer. Also, these cam followers are supplied with contact seals on both sides. Because of the high load tolerance, these cam followers cannot operate continuously at the same high speeds as the KR series.
Benefits: Very high load capacity, shock resistant, contact sealed on both sides.

Technical

D = 62mm
C = 29mm
d(Stud Diameter) = 24mm
B = 80mm
B1 = 49.5mm
B2 = 11mm
C1 = 0.8mm
d1 = 44mm
G = M24x1.5
G1 = 25mm
M1 = 4mm
r min = 1mm
SW = 14mm
Dynamic load = 31400 N
Static load = 72000 N
Fatigue load limit Pu = 9000 N
Radial dynamic load = 72000 N
Radial static load = 102000 N
Speed rating = 1100 rpm
Weight = 790 g
