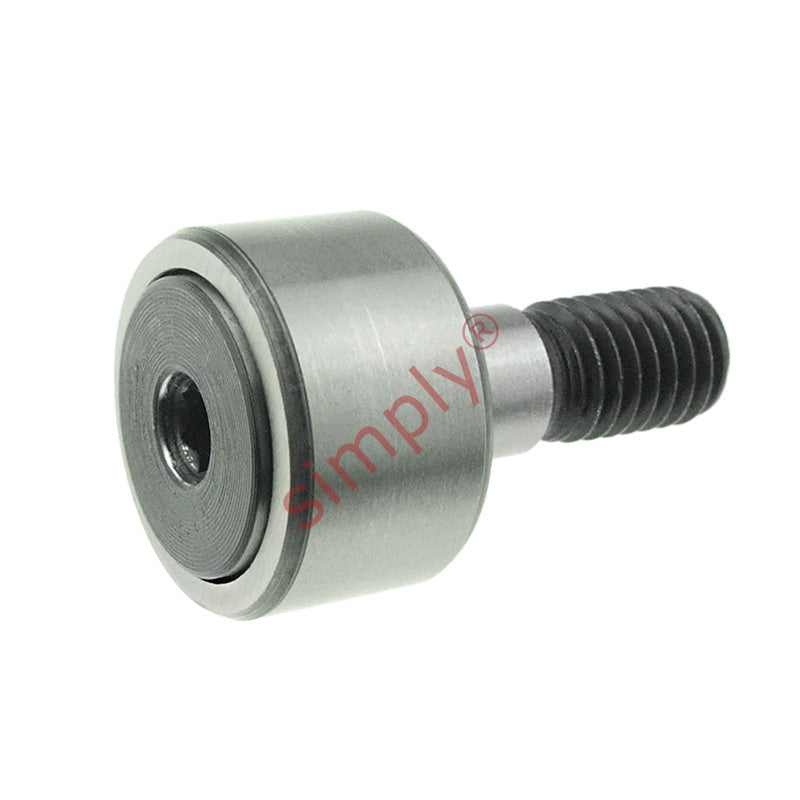

IKO KRV40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
New

SKU: KRV40PP-MB-IKO

IKO KRV40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread

$59.64 ex VAT
$59.64
ex VAT
In stock

Quantity Price Breaks

5+ $59.04
10+ $56.66
20+ $55.47
50+ $53.68
100+ $52.48
500+ $49.50
1000+ $41.75
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO KRV40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
SKU: KRV40PP-MB-IKO

IKO KRV40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread

$59.64 ex VAT
$59.64
ex VAT

Description

KRV-PP Series Crowned Cam Followers: These cam followers incorporate a full complement needle roller assembly allowing for maximum load support. Manufactured with a needle roller design that permits a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed-on side washer. Also, these cam followers are supplied with contact seals on both sides. Because of the high load tolerance, these cam followers cannot operate continuously at the same high speeds as the KR series.
Benefits: Very high load capacity, shock resistant, contact sealed on both sides.

Technical

D = 40mm
C = 20mm
d(Stud Diameter) = 18mm
B = 58mm
B1 = 36.5mm
B2 = 8mm
C1 = 0.8mm
d1 = 32mm
G = M18x1.5
G1 = 19mm
M = 6mm
M1 = 3mm
r min = 1mm
Dynamic load = 14200 N
Static load = 26500 N
Fatigue load limit Pu = 3100 N
Radial dynamic load = 17000 N
Radial static load = 24500 N
Speed rating = 1400 rpm
Weight = 250 g
