SKU: KBS25-PP-AS-INA

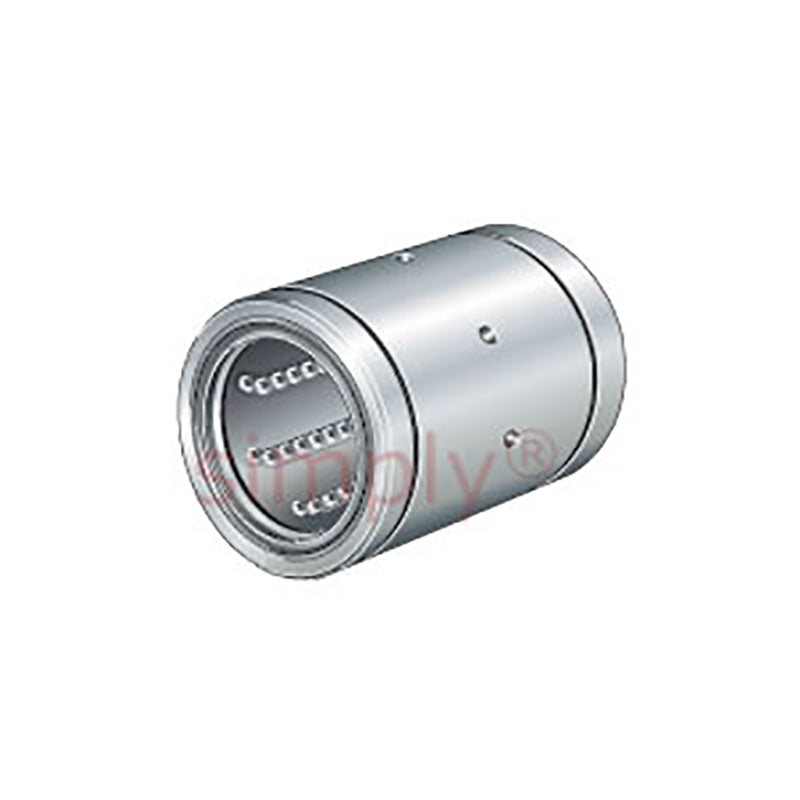

INA KBS25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
- Regular price
- $124.98 ex VAT
- Sale price
- $124.98
- Regular price
-
In stock
Quantity Price Breaks
10+
$111.23
19+
$104.98
29+
$103.73
39+
$102.48
49+
$101.23
74+
$99.98
99+
$93.74
199+
$92.49
249+
$91.24
499+
$89.99
999+
$87.49
SKU:
KBS25-PP-AS-INA
INA KBS25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
- Regular price
- $124.98 ex VAT
- Sale price
- $124.98
- Regular price
-
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
Technical

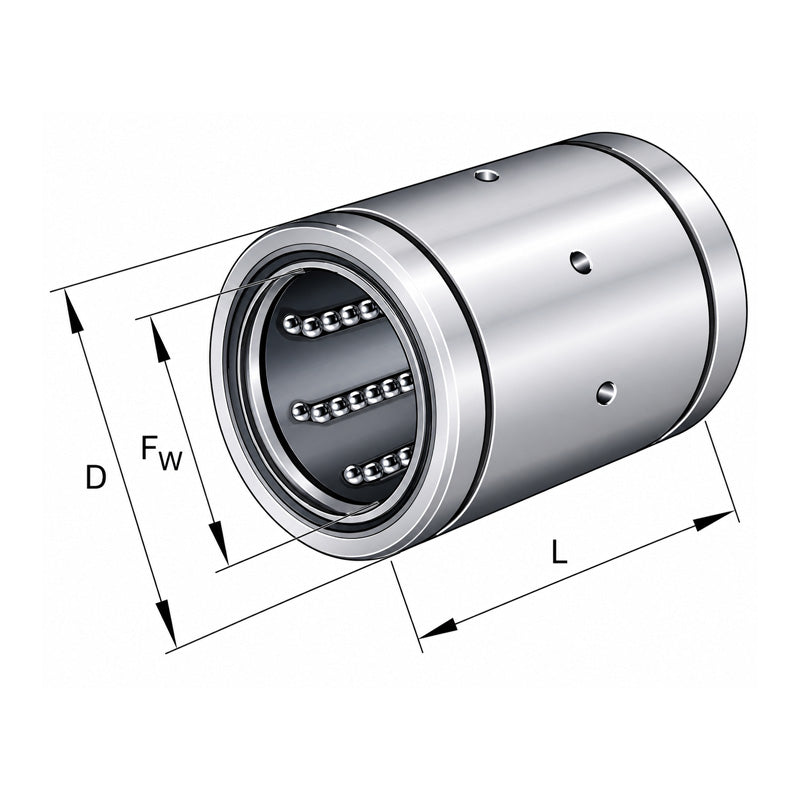

| Fw | = | 25mm |
| D | = | 40mm |
| L | = | 58mm |
| Numer of rows of balls | = | 6 |
| B3 | = | 1mm |
| BL2 | = | 1.85mm |
| DN | = | 37.5mm |
| L2 | = | 43.7mm |
| Mass | = | 0.19 kg |
| Basic dynamic load rating C min | = | 2800 N |
| Basic static load rating C0 min | = | 2220 N |
| Basic dynamic load rating C max | = | 2950 N |
| Basic static load rating C0 max | = | 2850 N |
