SKU: KBS12-PP-AS-INA

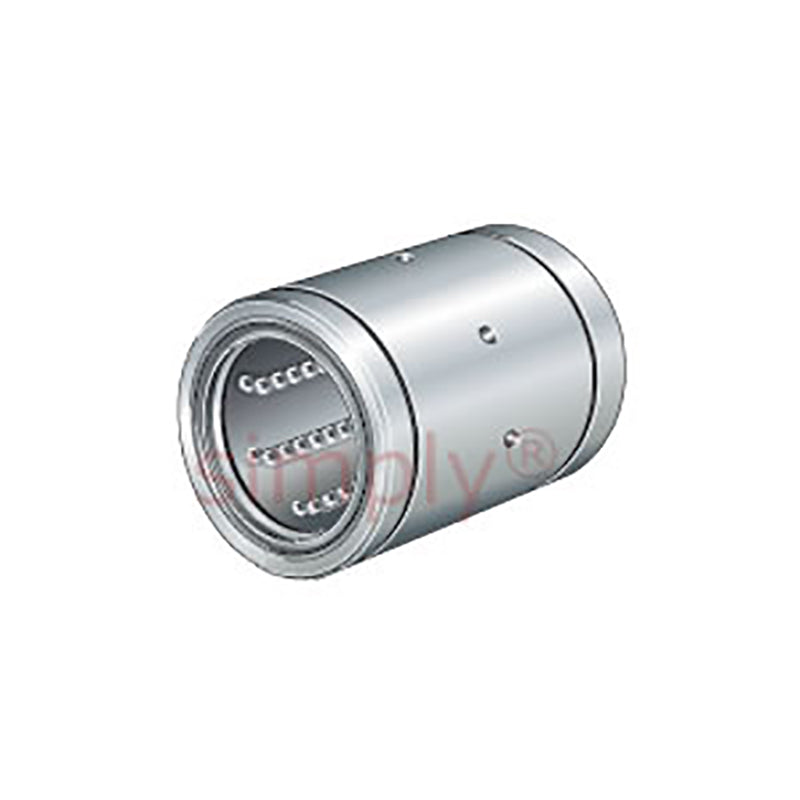

INA KBS12PPAS Relubricatable Linear Ball Bushing with Contact Seals 12x22x32mm
- Regular price
- $77.91 ex VAT
- Sale price
- $77.91
- Regular price
-
In stock
Quantity Price Breaks
10+
$69.34
19+
$65.44
29+
$64.67
39+
$63.89
49+
$63.11
74+
$62.33
99+
$58.43
199+
$57.65
249+
$56.87
499+
$56.10
999+
$54.54
SKU:
KBS12-PP-AS-INA
INA KBS12PPAS Relubricatable Linear Ball Bushing with Contact Seals 12x22x32mm
- Regular price
- $77.91 ex VAT
- Sale price
- $77.91
- Regular price
-
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
Technical

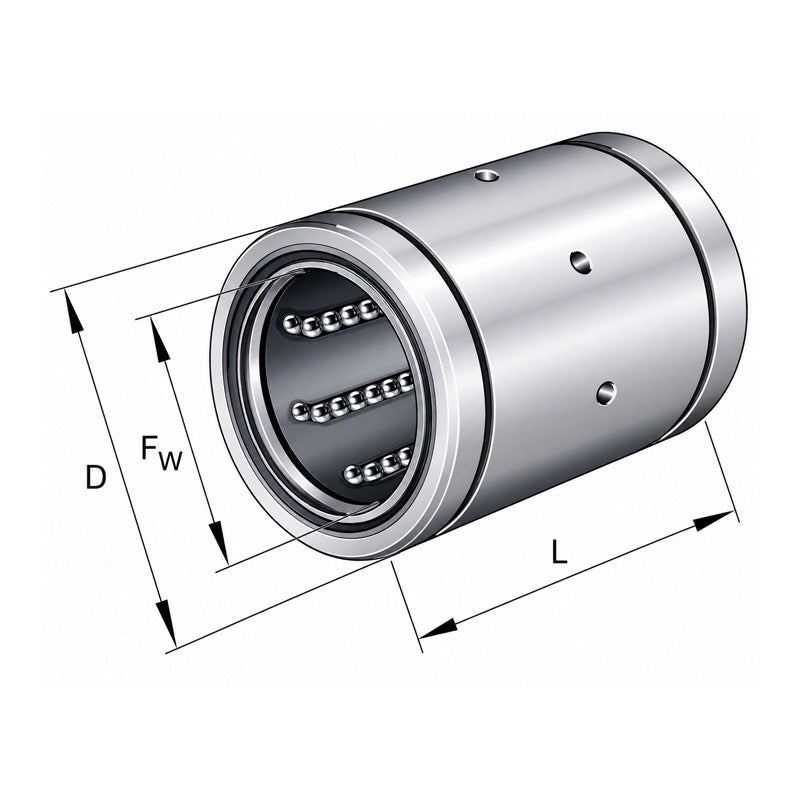

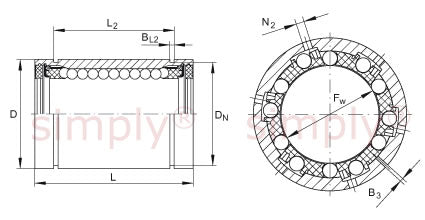

| Fw | = | 12mm |
| D | = | 22mm |
| L | = | 32mm |
| Numer of rows of balls | = | 5 |
| B3 | = | 1mm |
| BL2 | = | 1.3mm |
| DN | = | 21mm |
| L2 | = | 22.6mm |
| Mass | = | 0.04 kg |
| Basic dynamic load rating C min | = | 540 N |
| Basic static load rating C0 min | = | 385 N |
| Basic dynamic load rating C max | = | 640 N |
| Basic static load rating C0 max | = | 570 N |
