SKU: KBO12-PP-AS-INA

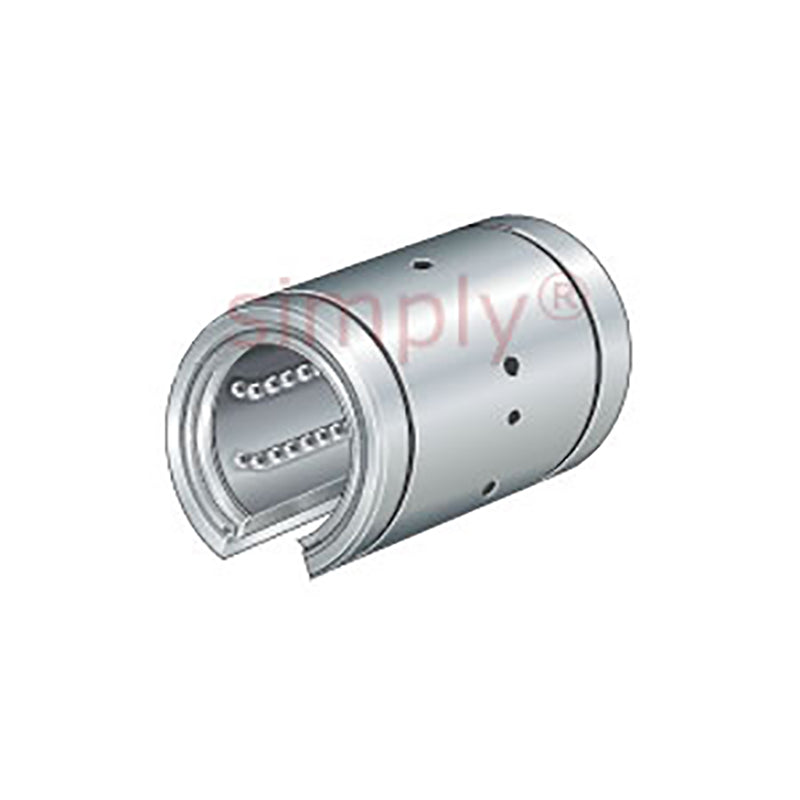

INA KBO12PPAS Relubricatable Linear Ball Bushing with Contact Seals 12x22x32mm
- Regular price
- $92.19 ex VAT
- Sale price
- $92.19
- Regular price
-
In stock
Quantity Price Breaks
10+
$82.05
19+
$77.44
29+
$76.52
39+
$75.60
49+
$74.67
74+
$73.75
99+
$69.14
199+
$68.22
249+
$67.30
499+
$66.38
999+
$64.53
SKU:
KBO12-PP-AS-INA
INA KBO12PPAS Relubricatable Linear Ball Bushing with Contact Seals 12x22x32mm
- Regular price
- $92.19 ex VAT
- Sale price
- $92.19
- Regular price
-
Description
|
INA KBO..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
Technical

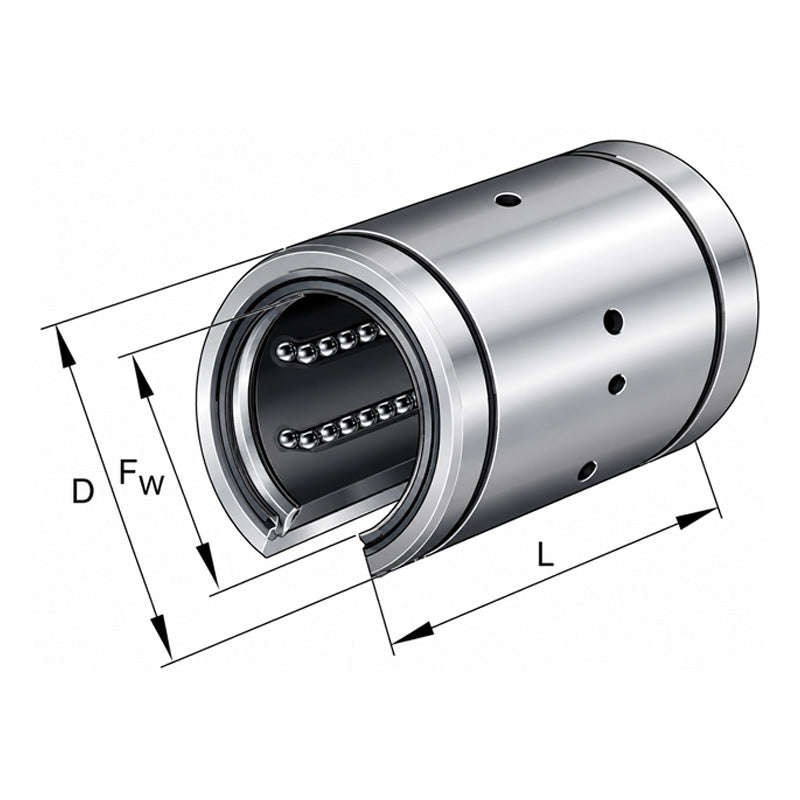

| Fw | = | 12mm |
| D | = | 22mm |
| L | = | 32mm |
| Number of rows of balls | = | 4 |
| B2 | = | 7.7mm |
| BL2 | = | 1.3mm |
| DN | = | 21mm |
| L2 | = | 22.6mm |
| N2 | = | 1.5mm |
| N4 | = | 2.2mm |
| T4 | = | 1.2mm |
| & | = | alpha |
| = | 78& | |
| deg | = | |
| & | = | beta |
| = | 64& | |
| deg | = | |
| Mass | = | 0.03 kg |
| Basic dynamic load rating C max | = | 600 N |
| Basic static load rating C0 max | = | 445 N |
