SKU: KB25-PP-AS-INA

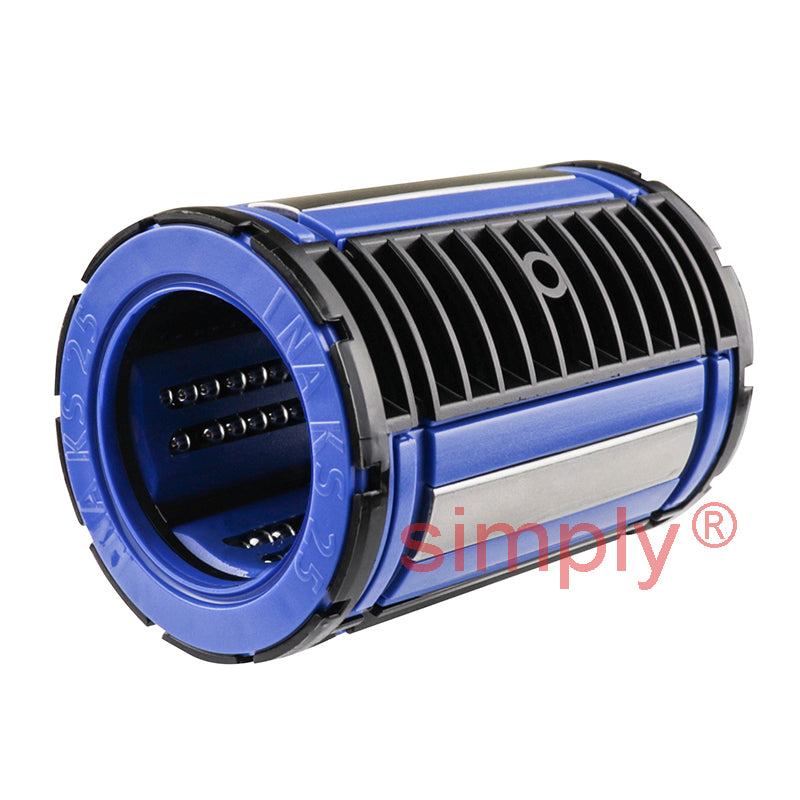

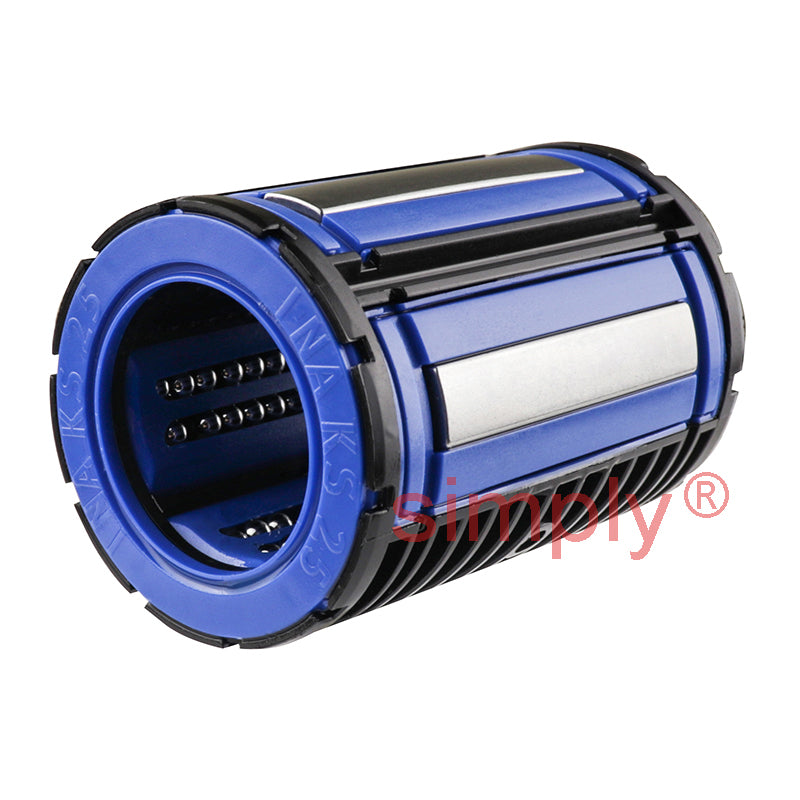

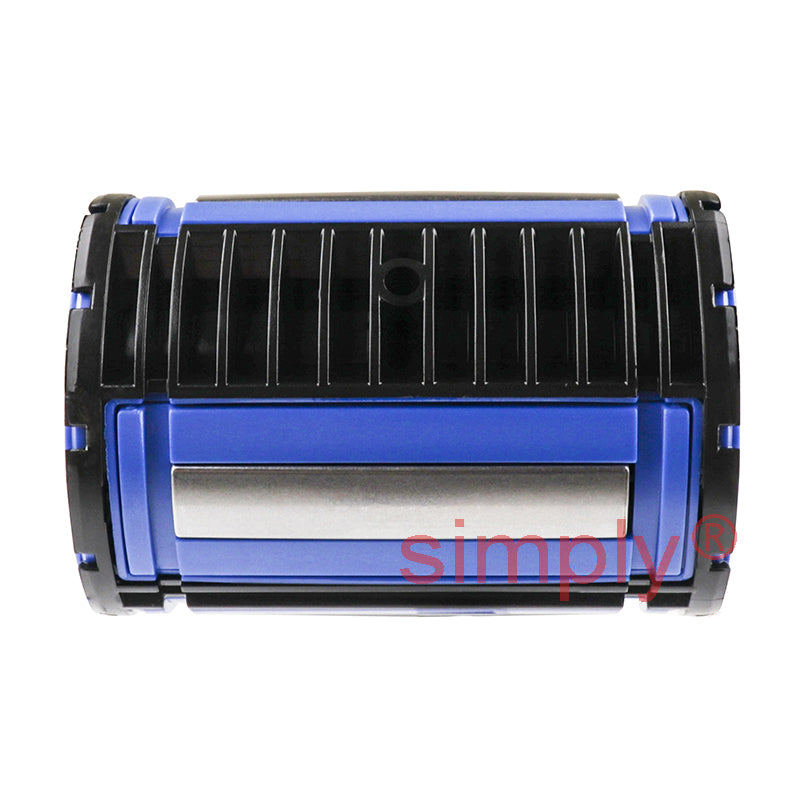

INA KB25PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 25x40x58mm
- Regular price
- $118.37 ex VAT
- Sale price
- $118.37
- Regular price
-
In stock
Quantity Price Breaks
10+
$105.35
19+
$99.43
29+
$98.25
39+
$97.06
49+
$95.88
74+
$94.70
99+
$88.78
199+
$87.59
249+
$86.41
499+
$85.23
999+
$82.86
SKU:
KB25-PP-AS-INA
INA KB25PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 25x40x58mm
- Regular price
- $118.37 ex VAT
- Sale price
- $118.37
- Regular price
-
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
Technical
| Fw | = | 25mm |
| D | = | 40mm |
| L | = | 58mm |
| Numer of rows of balls | = | 6 |
| BL2 | = | 1.85mm |
| DN | = | 37.5mm |
| L2 | = | 43.7mm |
| N2 | = | 2.5mm |
| Mass | = | 0.19 kg |
| Basic dynamic load rating C min | = | 2800 N |
| Basic static load rating C0 min | = | 2220 N |
| Basic dynamic load rating C max | = | 2950 N |
| Basic static load rating C0 max | = | 2850 N |
