SKU: KB16-PP-AS-INA

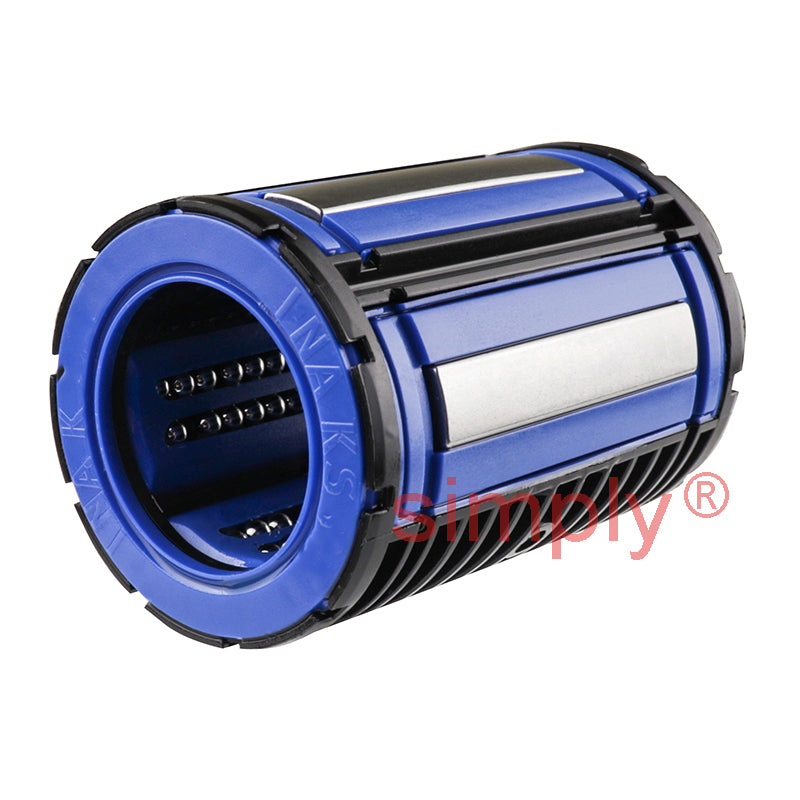

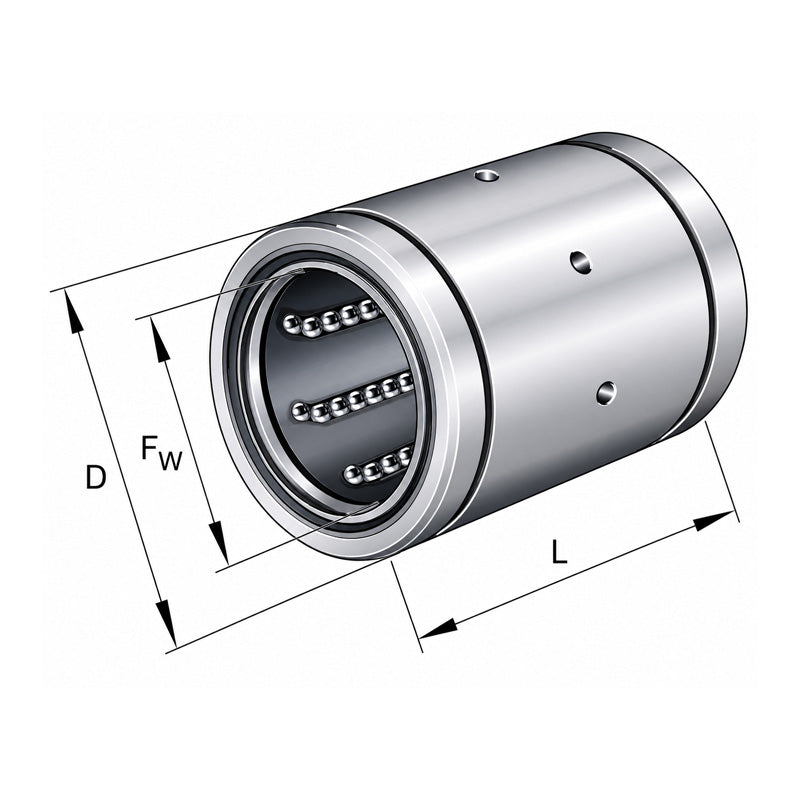

INA KB16PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 16x26x36mm
- Regular price
- $81.84 ex VAT
- Sale price
- $81.84
- Regular price
-
In stock
Quantity Price Breaks
10+
$72.84
19+
$68.75
29+
$67.93
39+
$67.11
49+
$66.29
74+
$65.47
99+
$61.38
199+
$60.56
249+
$59.74
499+
$58.92
999+
$57.29
SKU:
KB16-PP-AS-INA
INA KB16PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 16x26x36mm
- Regular price
- $81.84 ex VAT
- Sale price
- $81.84
- Regular price
-
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |

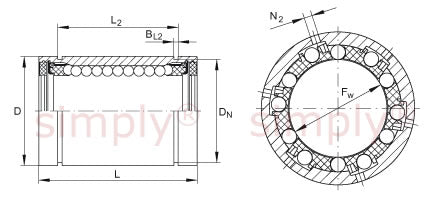

Technical
| Fw | = | 16mm |
| D | = | 26mm |
| L | = | 36mm |
| Numer of rows of balls | = | 5 |
| BL2 | = | 1.3mm |
| DN | = | 24.9mm |
| L2 | = | 24.6mm |
| N2 | = | 2mm |
| Mass | = | 0.05 kg |
| Basic dynamic load rating C min | = | 710 N |
| Basic static load rating C0 min | = | 530 N |
| Basic dynamic load rating C max | = | 840 N |
| Basic static load rating C0 max | = | 780 N |
