SKU: JUM-02-25

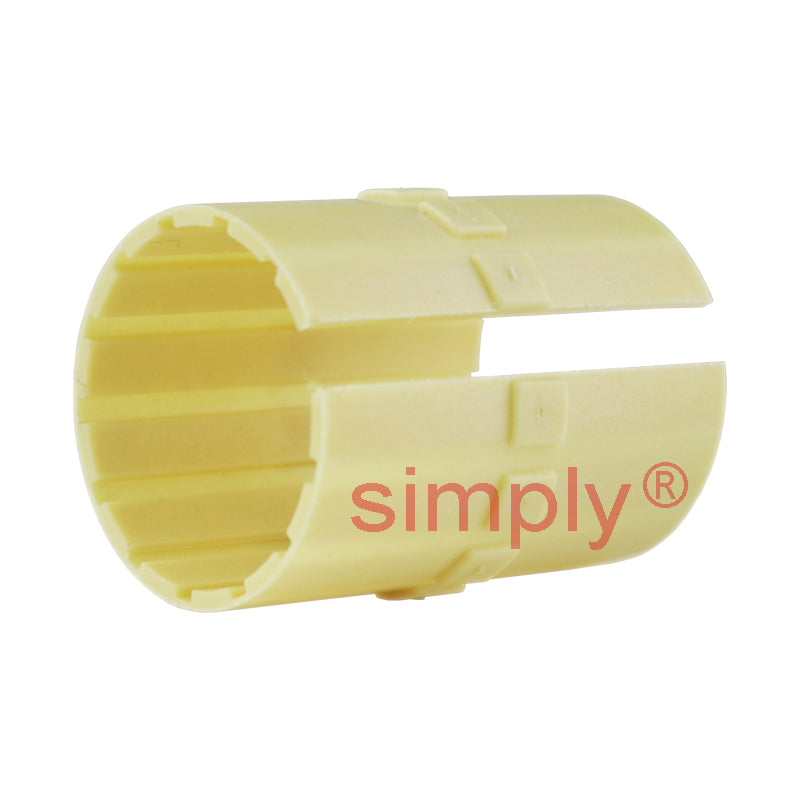

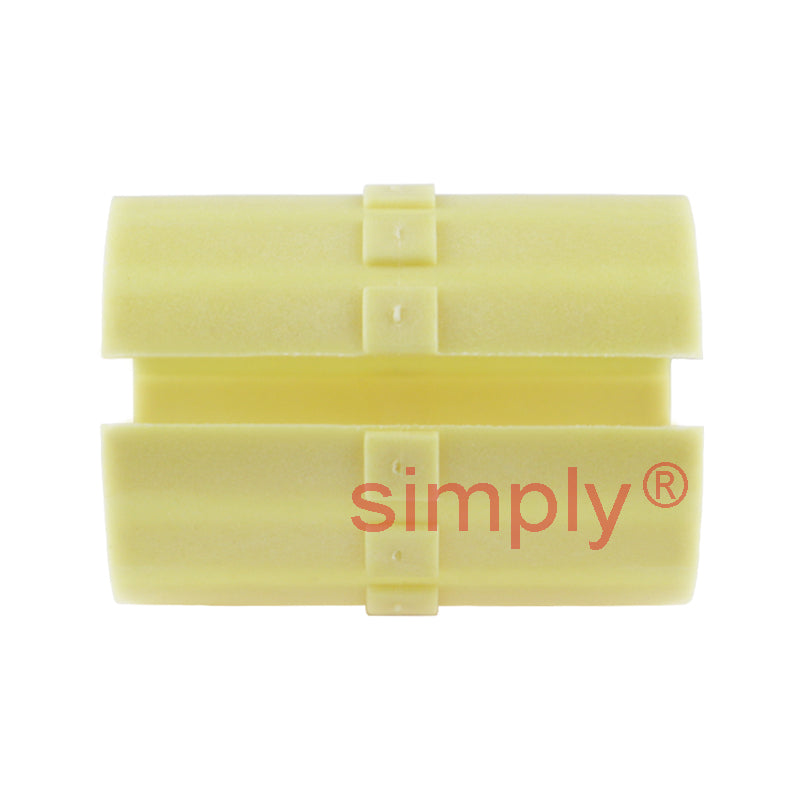

Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
- Regular price
- $24.81 ex VAT
- Sale price
- $24.81
- Regular price
-
In stock
Quantity Price Breaks
10
$22.08
19
$20.84
29
$20.59
39
$20.34
49
$20.10
74
$19.85
99
$18.61
199
$18.36
249
$18.11
499
$17.86
999
$17.37
SKU:
JUM-02-25
Igus drylin R JUM-02-25 Linear Slide Bearing 25x28x39mm
- Regular price
- $24.81 ex VAT
- Sale price
- $24.81
- Regular price
-

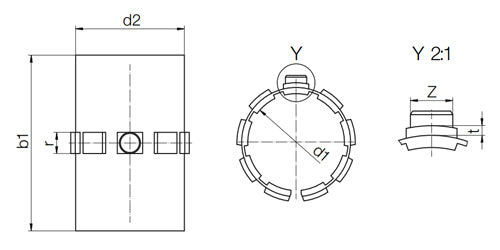

Technical
| d1 | = | 25mm |
| d2 | = | 28mm |
| b1 | = | 39mm |
| r | = | 5mm |
| t | = | 0.8mm |
| z | = | 4mm |
| di | = | 28mm |
| B | = | 40mm |
| r1 | = | 5mm |
| t1 | = | 1mm |
| f1 | = | 2mm |
| Z1 | = | 4.1mm |
| d1 Tolerance | = | +0.030 +0.070mm |
| di Tolerance | = | H7 |
| B Tolerance | = | h10 |
| r1 Tolerance | = | +0.05mm |
| t1 Tolerance | = | +0.1mm |
| f1 Tolerance | = | +0.5mm |
| z1 Tolerance | = | 0.2mm |
| Max. long-term application temperature | = | 90 deg C |
| Lower application temperature | = | -50 deg C |
