SKU: JSC028MS-JUB

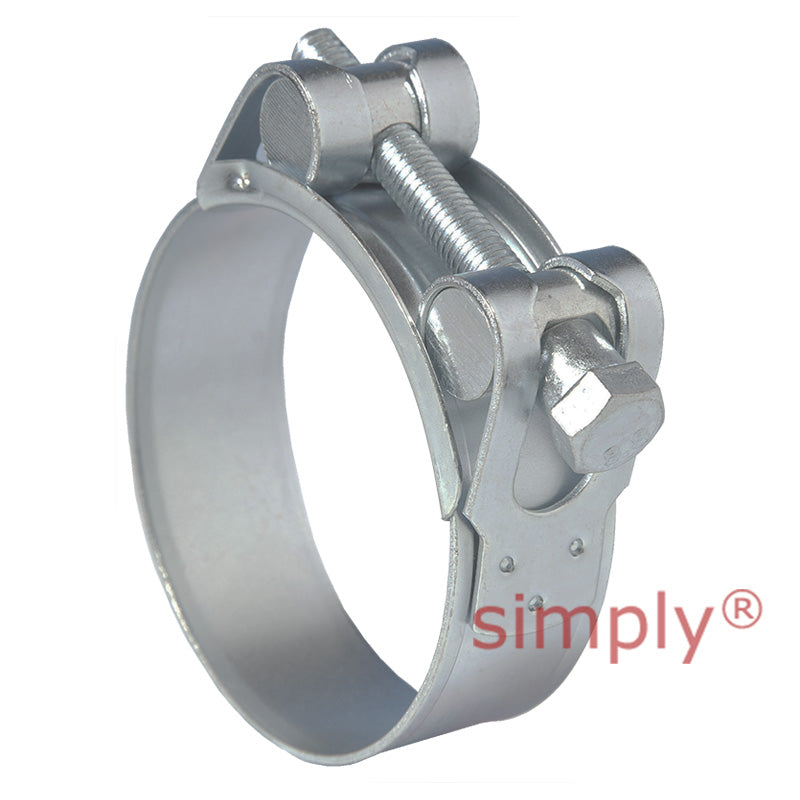

JSC028MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 26mm - 28mm Band Width 18mm
- Regular price
- $4.81 ex VAT
- Sale price
- $4.81
- Regular price
-
In stock
Quantity Price Breaks
3
$4.28
5
$4.04
9
$3.99
19
$3.94
49
$3.90
74
$3.85
99
$3.61
199
$3.56
249
$3.51
499
$3.46
999
$3.37
SKU:
JSC028MS-JUB
JSC028MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 26mm - 28mm Band Width 18mm
- Regular price
- $4.81 ex VAT
- Sale price
- $4.81
- Regular price
-
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

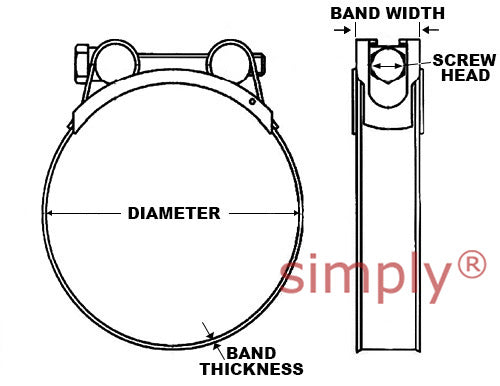

Technical
| Adjustment Range | = | 26mm - 28mm |
| Band Width (+/- 0.1) | = | 18mm |
| Band Thickness (+/- 0.1) | = | 0.6mm |
| Recommended Torque | = | 4.5Nm |
| Maximum Torque | = | 6Nm |
| Screw Head | = | 8mm |
