SKU: JSC022SS316-JUB

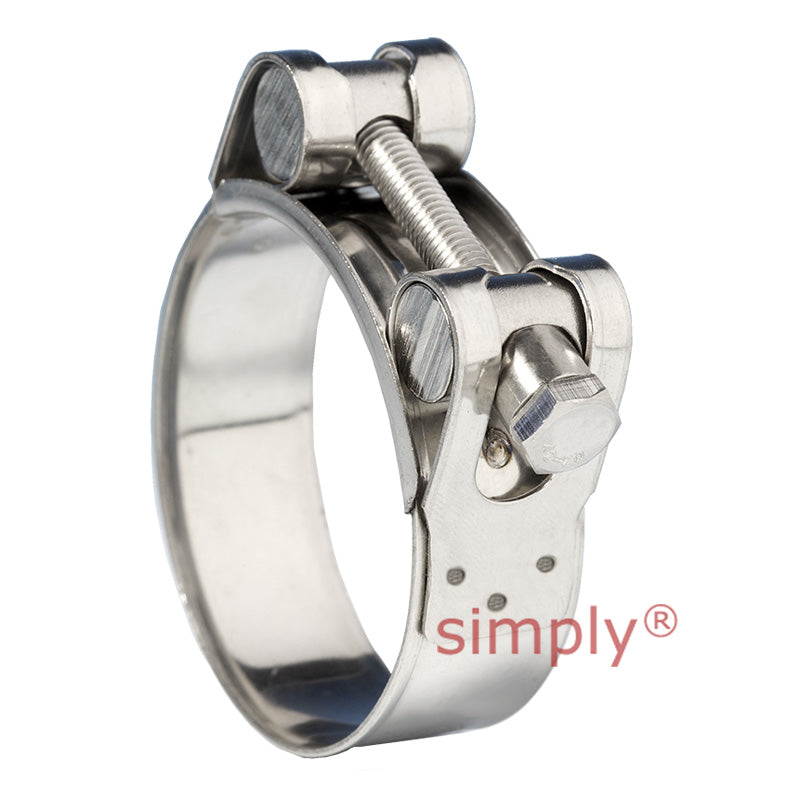

JSC022SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 20mm - 22mm Band Width 18mm
- Regular price
- $18.58 ex VAT
- Sale price
- $18.58
- Regular price
-
Not in stock
Quantity Price Breaks
3
$16.54
5
$15.61
9
$15.42
19
$15.24
49
$15.05
74
$14.86
99
$13.94
199
$13.75
249
$13.56
499
$13.38
999
$13.01
SKU:
JSC022SS316-JUB
JSC022SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 20mm - 22mm Band Width 18mm
- Regular price
- $18.58 ex VAT
- Sale price
- $18.58
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 20mm - 22mm |
| Band Width (+/- 0.1) | = | 18mm |
| Band Thickness (+/- 0.1) | = | 0.6mm |
| Recommended Torque | = | 4.5Nm |
| Maximum Torque | = | 6Nm |
| Screw Head | = | 8mm |
