SKU: HMK1012L/3AS-NTN
NTN HMK1012L/3AS Drawn Cup Needle Roller Bearing with Open End 10x17x12mm
- Regular price
- $7.17 ex VAT
- Sale price
- $7.17
- Regular price
-
In stock
Quantity Price Breaks
10+
$6.38
19+
$6.02
29+
$5.95
39+
$5.88
49+
$5.81
74+
$5.74
99+
$5.38
199+
$5.31
249+
$5.23
499+
$5.16
999+
$5.02
SKU:
HMK1012L/3AS-NTN
NTN HMK1012L/3AS Drawn Cup Needle Roller Bearing with Open End 10x17x12mm
- Regular price
- $7.17 ex VAT
- Sale price
- $7.17
- Regular price
-
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
Technical

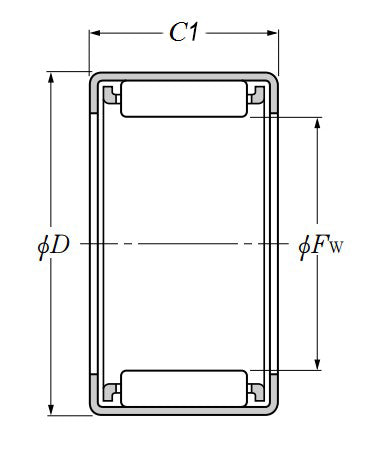

| Fw - Inside diameter | = | 10mm |
| D - Outside diameter | = | 17mm |
| C1 - Width of Drawn cup L | = | 12mm |
| Lubrication hole on outer ring? | = | No |
| Inner ring reference | = | IR7X10X16 |
| Cr - Dynamic load rating | = | 4.25 kN |
| C0r - Static load rating | = | 3.45 kN |
| N - Grease lubrication limit speed | = | 10000 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +100 Deg C |
