SKU: HK3518L/3AS-NTN

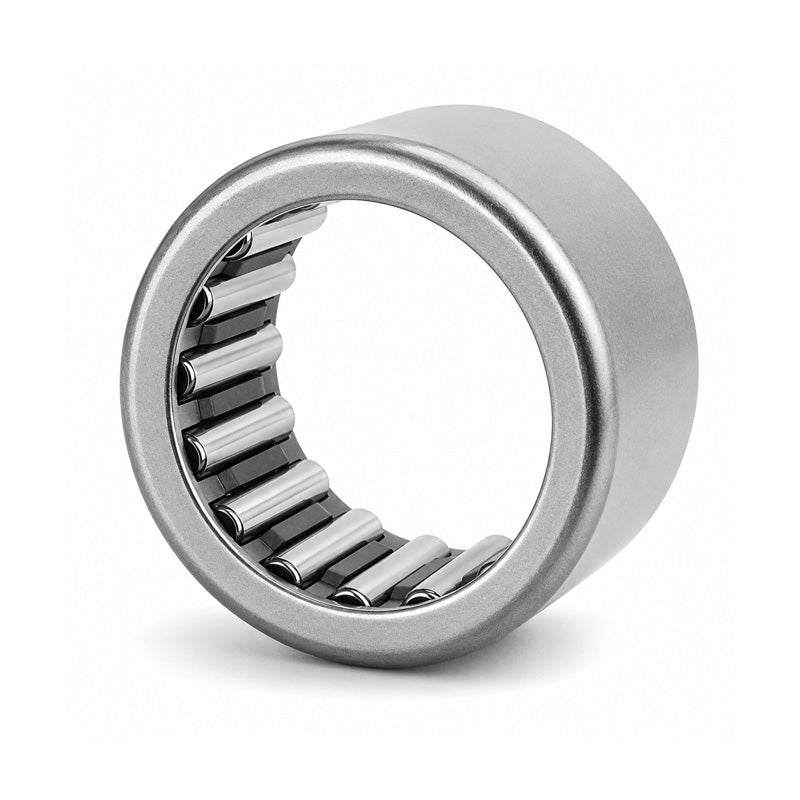

NTN HK3518L/3AS Drawn Cup Needle Roller Bearing with Open End 35x42x18mm
- Regular price
- $11.29 ex VAT
- Sale price
- $11.29
- Regular price
-
In stock
Quantity Price Breaks
10+
$10.05
19+
$9.48
29+
$9.37
39+
$9.26
49+
$9.14
74+
$9.03
99+
$8.47
199+
$8.35
249+
$8.24
499+
$8.13
999+
$7.90
SKU:
HK3518L/3AS-NTN
NTN HK3518L/3AS Drawn Cup Needle Roller Bearing with Open End 35x42x18mm
- Regular price
- $11.29 ex VAT
- Sale price
- $11.29
- Regular price
-
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
Technical
| Fw - Inside diameter | = | 35mm |
| D - Outside diameter | = | 42mm |
| C1 - Width of Drawn cup L | = | 18mm |
| C3 - Max drawn cup closed end thickness LL | = | 2.7mm |
| Lubrication hole on outer ring? | = | No |
| Cr - Dynamic load rating | = | 19.7 kN |
| C0r - Static load rating | = | 35 kN |
| N - Grease lubrication limit speed | = | 4600 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +100 Deg C |
