SKU: HK3018RS-MB

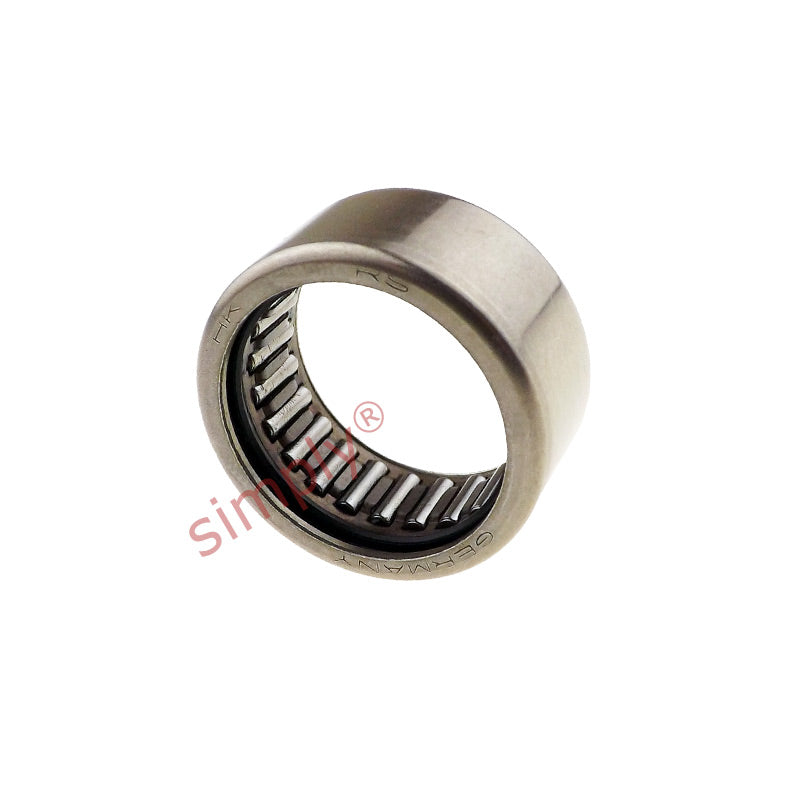

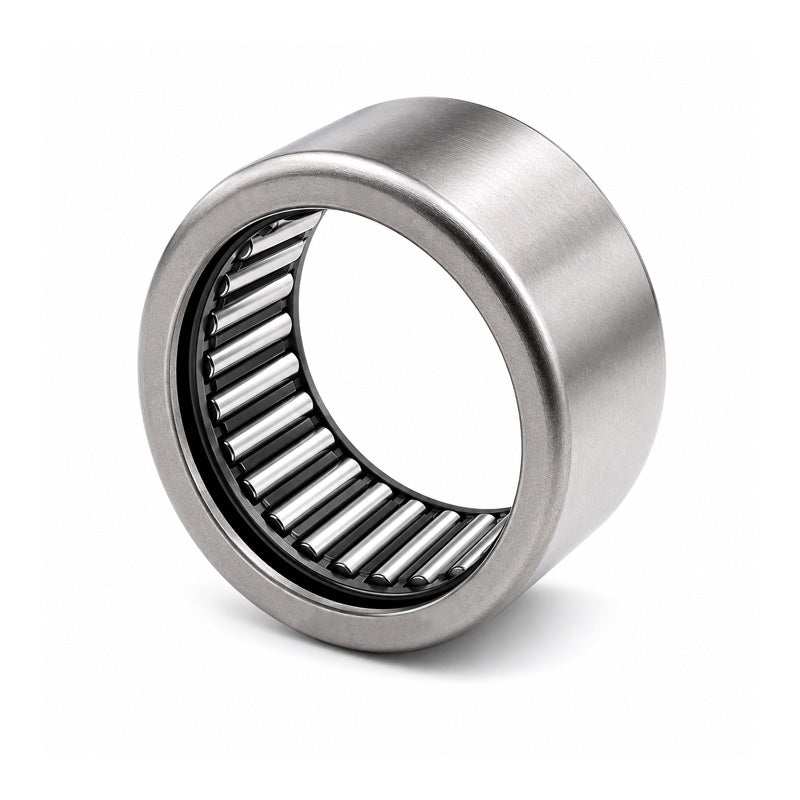

Major Brand HK3018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 30x37x18mm
- Regular price
- $13.97 ex VAT
- Sale price
- $13.97
- Regular price
-
In stock
Quantity Price Breaks
10
$12.43
19
$11.73
29
$11.60
39
$11.46
49
$11.32
74
$11.18
99
$10.48
199
$10.34
249
$10.20
499
$10.06
999
$9.78
SKU:
HK3018RS-MB
Major Brand HK3018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 30x37x18mm
- Regular price
- $13.97 ex VAT
- Sale price
- $13.97
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 30mm |
| D | = | 37mm |
| C | = | 18mm |
| Dynamic load | = | 16500 N |
| Static load | = | 29000 N |
| Fatigue load limit Pu | = | 3400 N |
| Speed in grease | = | 6000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 32mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR25x30x20.5 |
| Weight | = | 37 g |
