SKU: HK2820LL/3AS-NTN
NTN HK2820LL/3AS Drawn Cup Needle Roller Bearing with Open End 28x35x20mm
- Regular price
- $10.43 ex VAT
- Sale price
- $10.43
- Regular price
-
In stock
Quantity Price Breaks
10+
$9.28
19+
$8.76
29+
$8.66
39+
$8.55
49+
$8.45
74+
$8.34
99+
$7.82
199+
$7.72
249+
$7.61
499+
$7.51
999+
$7.30
SKU:
HK2820LL/3AS-NTN
NTN HK2820LL/3AS Drawn Cup Needle Roller Bearing with Open End 28x35x20mm
- Regular price
- $10.43 ex VAT
- Sale price
- $10.43
- Regular price
-
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design

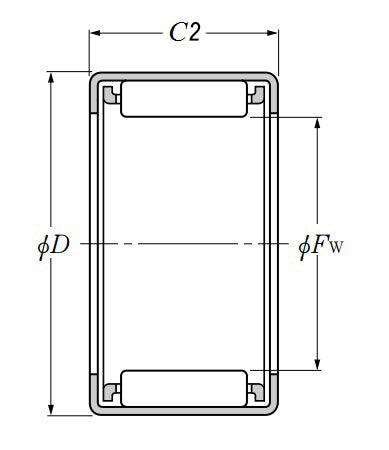

Technical
| Fw - Inside diameter | = | 28mm |
| D - Outside diameter | = | 35mm |
| C2 - Width of drawn cup LL | = | 20mm |
| Lubrication hole on outer ring? | = | No |
| Inner ring reference | = | IR22X28X23 |
| Cr - Dynamic load rating | = | 17.3 kN |
| C0r - Static load rating | = | 27.6 kN |
| N - Grease lubrication limit speed | = | 5500 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +100 Deg C |
