SKU: HK2018L/3AS-NTN

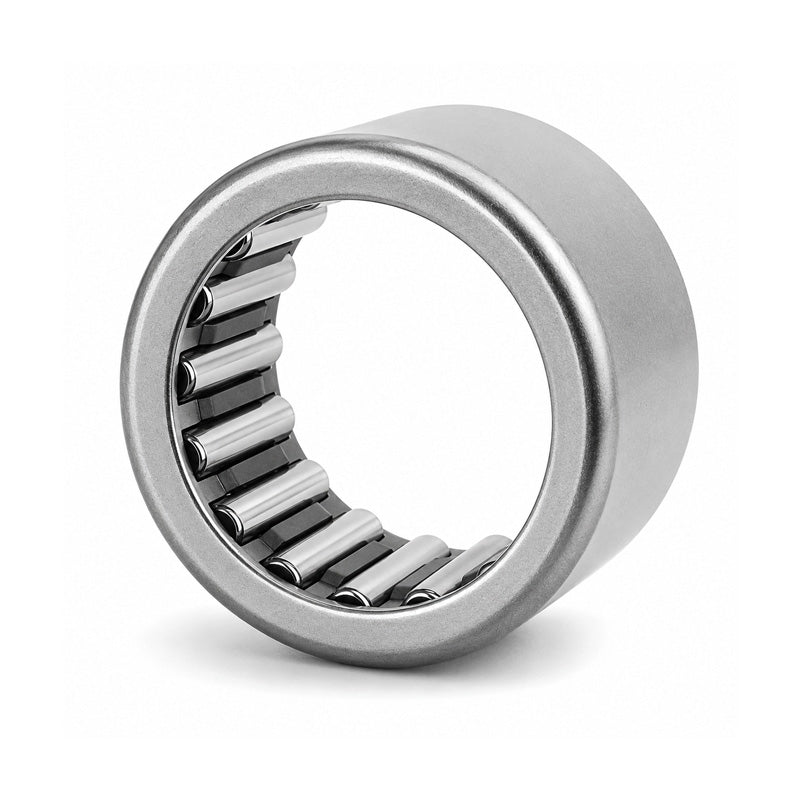

NTN HK2018L/3AS Drawn Cup Needle Roller Bearing with Open End 20x26x18mm
- Regular price
- $8.80 ex VAT
- Sale price
- $8.80
- Regular price
-
In stock
Quantity Price Breaks
10+
$7.83
19+
$7.39
29+
$7.30
39+
$7.22
49+
$7.13
74+
$7.04
99+
$6.60
199+
$6.51
249+
$6.42
499+
$6.34
999+
$6.16
SKU:
HK2018L/3AS-NTN
NTN HK2018L/3AS Drawn Cup Needle Roller Bearing with Open End 20x26x18mm
- Regular price
- $8.80 ex VAT
- Sale price
- $8.80
- Regular price
-
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
Technical
| Fw - Inside diameter | = | 20mm |
| D - Outside diameter | = | 26mm |
| C1 - Width of Drawn cup L | = | 18mm |
| C3 - Max drawn cup closed end thickness LL | = | 2.7mm |
| Lubrication hole on outer ring? | = | No |
| Inner ring reference | = | IR17X20X20 |
| Cr - Dynamic load rating | = | 13 kN |
| C0r - Static load rating | = | 20.1 kN |
| N - Grease lubrication limit speed | = | 8000 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +100 Deg C |
