SKU: HK0408T2-NTN
NTN HK0408T2 Drawn Cup Needle Roller Bearing with Open End 4x8x8mm
- Regular price
- $6.10 ex VAT
- Sale price
- $6.10
- Regular price
-
In stock
Quantity Price Breaks
10+
$5.43
19+
$5.12
29+
$5.06
39+
$5.00
49+
$4.94
74+
$4.88
99+
$4.58
199+
$4.51
249+
$4.45
499+
$4.39
999+
$4.27
SKU:
HK0408T2-NTN

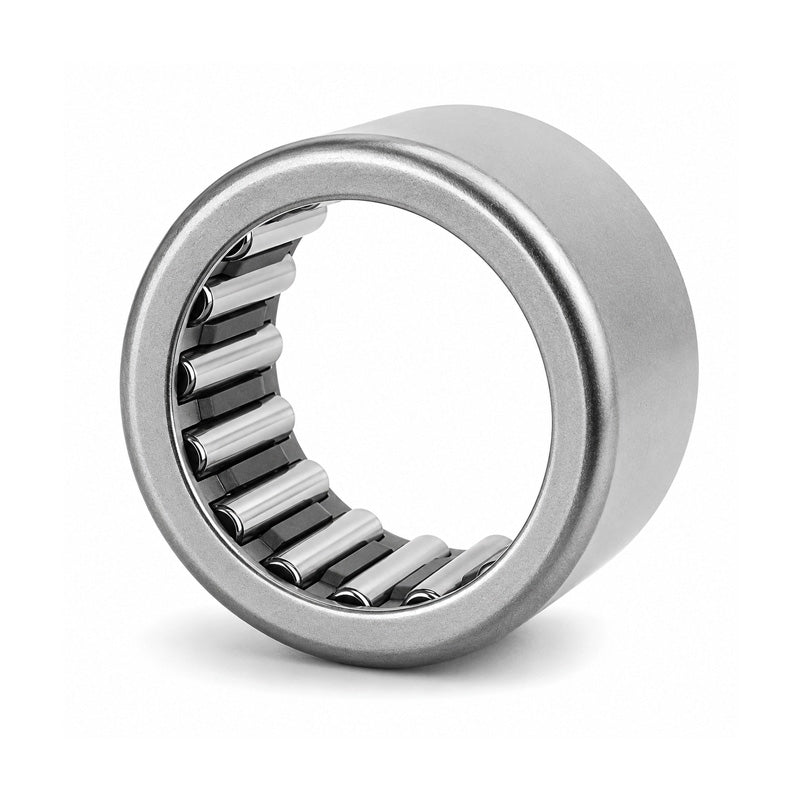

NTN HK0408T2 Drawn Cup Needle Roller Bearing with Open End 4x8x8mm
- Regular price
- $6.10 ex VAT
- Sale price
- $6.10
- Regular price
-
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design

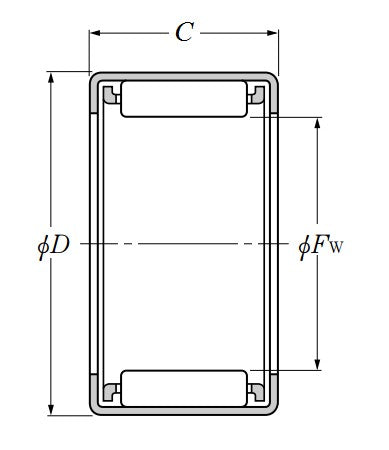

Technical
| Fw - Inside diameter | = | 4mm |
| D - Outside diameter | = | 8mm |
| C - Width of bearing, drawn cup or outer ring | = | 8mm |
| Lubrication hole on outer ring? | = | No |
| Cr - Dynamic load rating | = | 1.77 kN |
| C0r - Static load rating | = | 1.27 kN |
| N - Grease lubrication limit speed | = | 30000 tr/min |
| N - Oil lubrication limit speed | = | 45000 tr/min |
| Tmin - Minimum operating temperature | = | -20 Deg C |
| Tmax - Maximum operating temperature | = | +100 Deg C |
