SKU: HGJ12-JCS

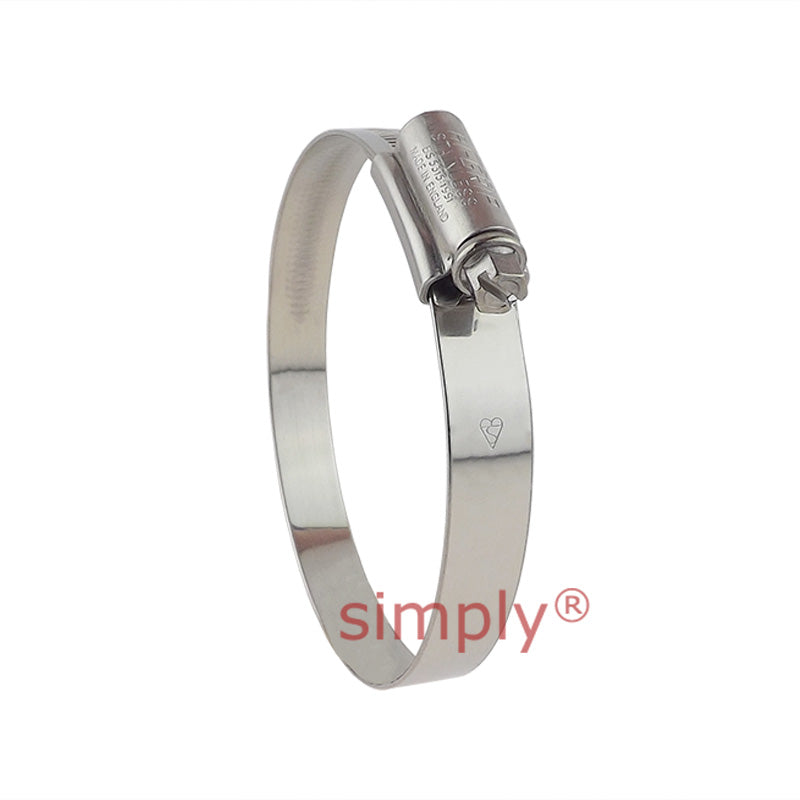

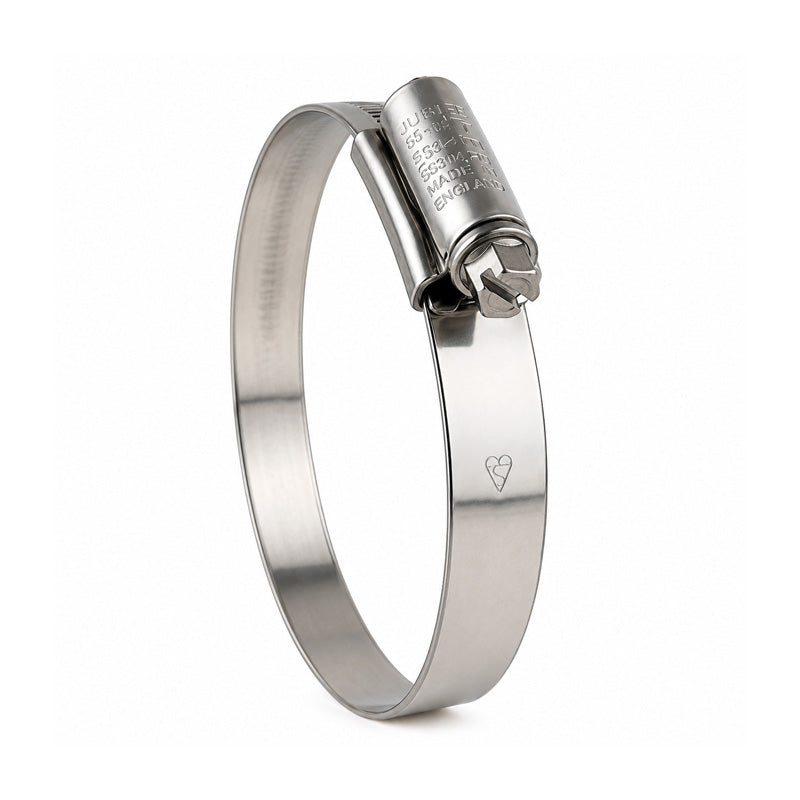

JCS HGJ12 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 9.5-12mm Band Width 9mm
- Regular price
- $9.04 ex VAT
- Sale price
- $9.04
- Regular price
-
In stock
Quantity Price Breaks
3
$8.05
5
$7.59
9
$7.50
19
$7.41
49
$7.32
74
$7.23
99
$6.78
199
$6.69
249
$6.60
499
$6.51
999
$6.33
SKU:
HGJ12-JCS
JCS HGJ12 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 9.5-12mm Band Width 9mm
- Regular price
- $9.04 ex VAT
- Sale price
- $9.04
- Regular price
-
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
Technical
| BS No. | = | 12 |
| Adjustment Range (mm) | = | 9.5-12mm |
| Adjustment Range (inch) | = | 3/8 - 1/2 inch |
| A | = | 7mm |
| B | = | 14mm |
| C | = | 10mm |
| D | = | 12mm |
| E | = | 9mm |
| F | = | 0.7mm |
| Screw | = | 7mm A/F |
| Recommended Torque Nm | = | 3Nm |
| Recommended Torque lb-in | = | 26lb-in |
