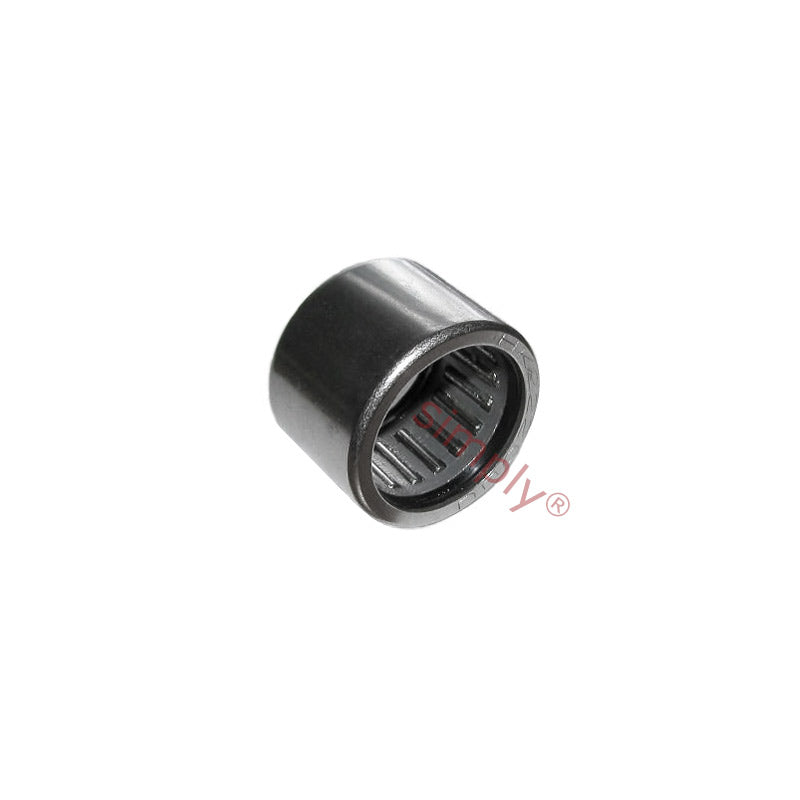

HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm

SKU: HF.0612.EU

HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm

$3.88 ex VAT
$3.88
ex VAT
In stock

Quantity Price Breaks

10+ $3.45
19+ $3.26
29+ $3.22
39+ $3.18
49+ $3.14
74+ $3.10
99+ $2.91
199+ $2.87
249+ $2.83
499+ $2.79
999+ $2.72
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm
SKU: HF.0612.EU

HF0612 Budget Needle Roller Clutch Type One Way Bearing 6x10x12mm

$3.88 ex VAT
$3.88
ex VAT

Description

Budget Clutch Needle Roller Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease.
They can be used together with needle roller bearings of the HK and BK series and are dimensionally the same and are available for shaft diameters from 6mm to 35mm
Benefits: High indexing accuracy, transmit torques in one direction, work at –10 deg C to +70 deg C
Please note: This bearing will turn in one direction only

Technical

Fw = 6mm
D = 10mm
C = 12mm (Tolerance: 0/-0.3)
r min = 0.3mm
Permissable torque = 1.76 Nm
Speed (rotating shaft) = 23000 rpm
Speed (rotating outer ring) = 13000 rpm
Weight = 3 g
