SKU: HA2334-EU
HA2334 Budget Imperial Adaptor Sleeve for 5-15/16 inch Shaft
- Regular price
- $643.32 ex VAT
- Sale price
- $643.32
- Regular price
-
Not in stock
Quantity Price Breaks
10
$572.55
19
$540.39
29
$533.96
39
$527.52
49
$521.09
74
$514.66
99
$482.49
199
$476.06
249
$469.62
499
$463.19
999
$450.32
SKU:
HA2334-EU
HA2334 Budget Imperial Adaptor Sleeve for 5-15/16 inch Shaft
- Regular price
- $643.32 ex VAT
- Sale price
- $643.32
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical

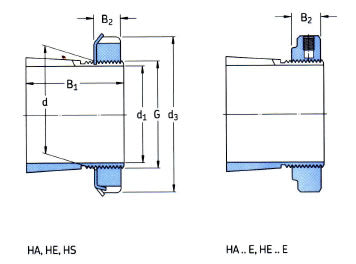

| --- | = | Dimensions |
| d1 | = | 150.813mm (5-15/16) inch |
| d | = | 170mm |
| d3 | = | 220mm |
| B1 | = | 154mm |
| B2 | = | 28.5mm |
| G | = | Thread 170x3mm |
| Weight | = | 9.6 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HA2334 |
| Nut | = | KM34 |
| Washer | = | MB34 |
| Hydraulic nut | = | HMV34E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23234K+taper> | = | 23234K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22334K+taper> | = | 22334K< |
| /a> | = |
