SKU: GRA102-NPP-B-AS2/V-INA
INA GRA102NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 28.58x62x35.8mm
- Regular price
- $40.84 ex VAT
- Sale price
- $40.84
- Regular price
-
In stock
Quantity Price Breaks
10+
$36.35
19+
$34.31
29+
$33.90
39+
$33.49
49+
$33.08
74+
$32.67
99+
$30.63
199+
$30.22
249+
$29.81
499+
$29.40
999+
$28.59
SKU:
GRA102-NPP-B-AS2/V-INA
INA GRA102NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 28.58x62x35.8mm
- Regular price
- $40.84 ex VAT
- Sale price
- $40.84
- Regular price
-
Description
|

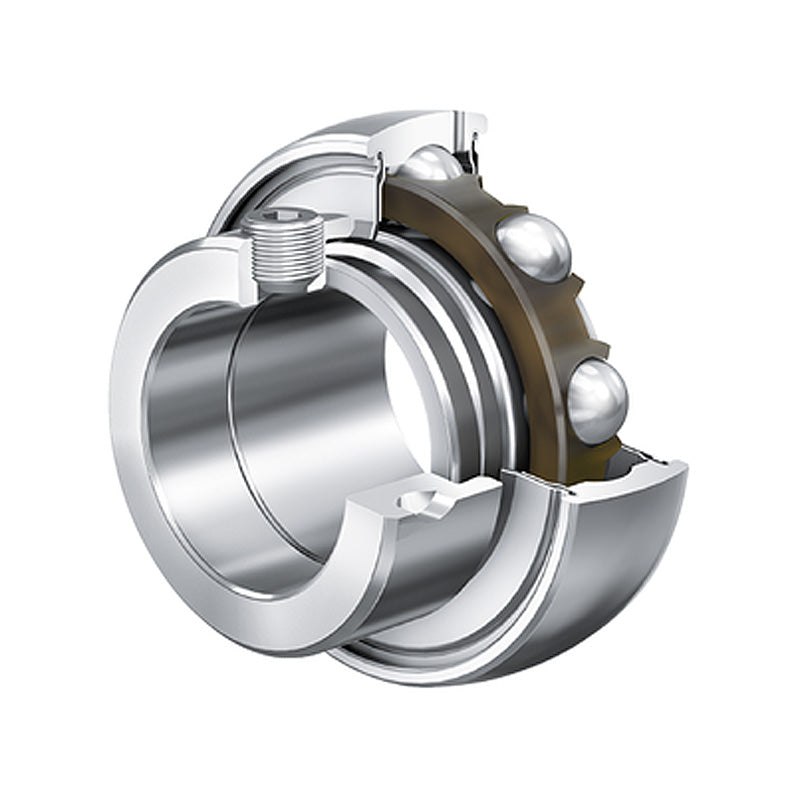

INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
Technical
| d | = | 1-1/8 inch |
| d | = | 28.58mm |
| Dsp | = | 2.4409 inch |
| Dsp | = | 62mm |
| B1 | = | 1.4090 inch |
| B1 | = | 35.8mm |
| B | = | 0.937 inch |
| C | = | 0.709 inch |
| Ca | = | 0.185 inch |
| d2 | = | 1.472 inch |
| d3 | = | 1.732 inch |
| S | = | 0.354 inch |
| W | = | 5/32 inch |
| Dynamic load Cr | = | 4350 lbf |
| Dynamic load Cr | = | 19500 N |
| Static load C0r | = | 2550 lbf |
| Static load C0r | = | 11300 N |
| Weight | = | 0.68 lbs |
