SKU: FYTJ30KF-SKF

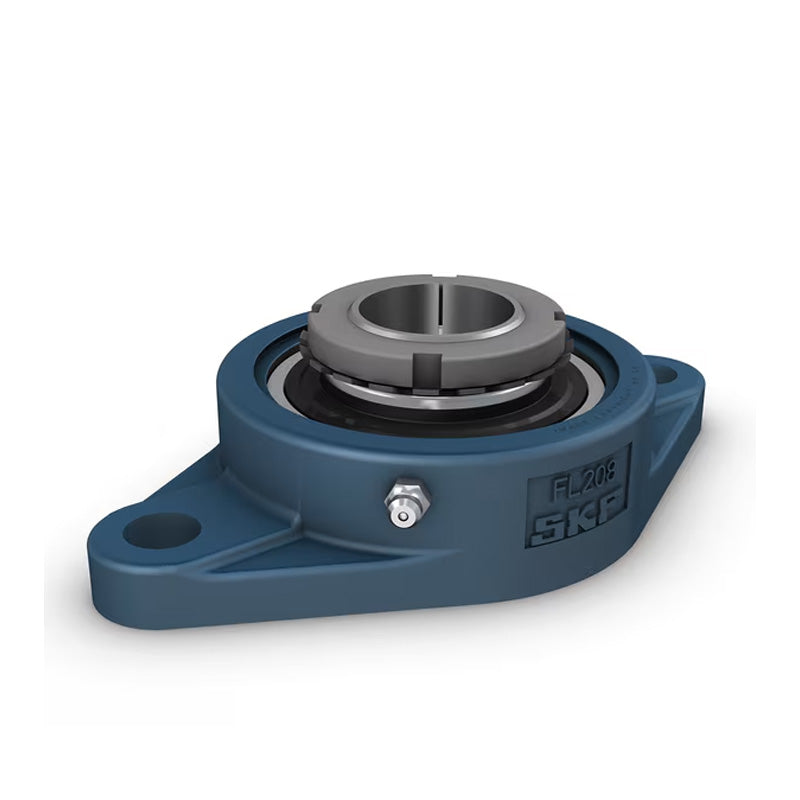

SKF FYTJ30KF Flanged Unit with an Oval Cast Housing with 25mm Insert
- Regular price
- $79.50 ex VAT
- Sale price
- $79.50
- Regular price
-
In stock
Quantity Price Breaks
10+
$70.76
19+
$66.78
29+
$65.99
39+
$65.19
49+
$64.40
74+
$63.60
99+
$59.63
199+
$58.83
249+
$58.04
499+
$57.24
999+
$55.65
SKU:
FYTJ30KF-SKF
SKF FYTJ30KF Flanged Unit with an Oval Cast Housing with 25mm Insert
- Regular price
- $79.50 ex VAT
- Sale price
- $79.50
- Regular price
-
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |

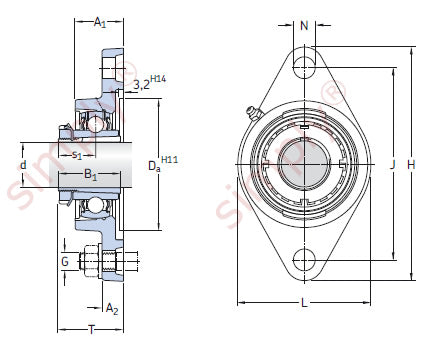

Technical
| d | = | 25mm |
| A1 | = | 30.5mm |
| A2 | = | 13.5mm |
| B1 | = | 38mm |
| Da | = | 76.2mm |
| H | = | 148mm |
| J | = | 117mm |
| L | = | 80mm |
| N | = | 16mm |
| G | = | 14mm |
| s1 | = | 22mm |
| T | = | 40mm |
| Static load Cr | = | 11.2 kN |
| Dynamic load Cor | = | 19.5 kN |
| Fatigue load limit Pu | = | 0.475 kN |
| Limiting speed | = | 6300 rpm |
| Weight | = | 0.83 kg |
