SKU: FYTB50WF-SKF

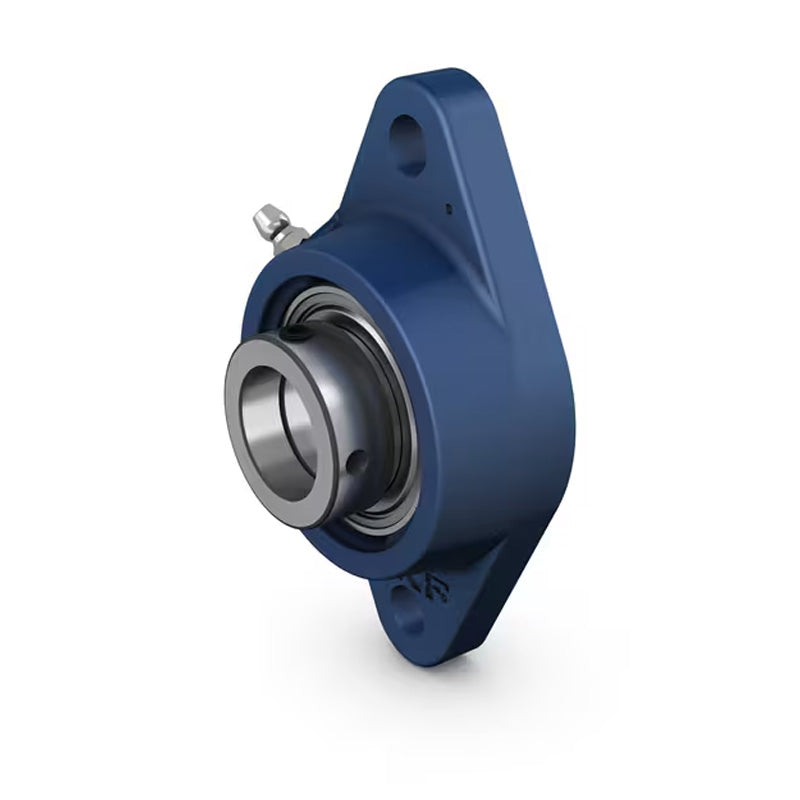

SKF FYTB50WF Oval Cast Housing with Grub Screw 50mm Insert
- Regular price
- $151.57 ex VAT
- Sale price
- $151.57
- Regular price
-
In stock
Quantity Price Breaks
10+
$134.90
19+
$127.32
29+
$125.80
39+
$124.29
49+
$122.77
74+
$121.26
99+
$113.68
199+
$112.16
249+
$110.65
499+
$109.13
999+
$106.10
SKU:
FYTB50WF-SKF
SKF FYTB50WF Oval Cast Housing with Grub Screw 50mm Insert
- Regular price
- $151.57 ex VAT
- Sale price
- $151.57
- Regular price
-
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

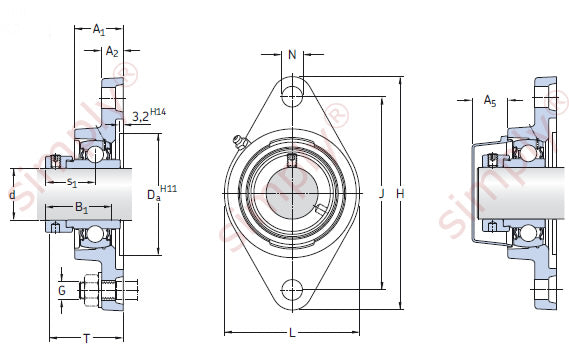

Technical
| d | = | 50mm |
| A1 | = | 43mm |
| A2 | = | 15mm |
| B1 | = | 62.7mm |
| Da | = | 101.6mm |
| H | = | 189mm |
| J | = | 157mm |
| L | = | 116mm |
| N | = | 18mm |
| G | = | 16mm |
| s1 | = | 38.1mm |
| T | = | 66.1mm |
| Static load Cr | = | 23.2 kN |
| Dynamic load Cor | = | 35.1 kN |
| Fatigue load limit Pu | = | 0.98 kN |
| Limiting speed | = | 4000 rpm |
| A5 | = | 29.5mm |
| Weight | = | 2.35 kg |
| Compatible end cover closed | = | ECY210 |
