SKU: FYTB40FM-SKF
SKF FYTB40FM Oval Cast Housing with Grub Screw 40mm Insert
- Regular price
- $94.57 ex VAT
- Sale price
- $94.57
- Regular price
-
In stock
Quantity Price Breaks
10+
$84.17
19+
$79.44
29+
$78.49
39+
$77.55
49+
$76.60
74+
$75.66
99+
$70.93
199+
$69.98
249+
$69.04
499+
$68.09
999+
$66.20
SKU:
FYTB40FM-SKF
SKF FYTB40FM Oval Cast Housing with Grub Screw 40mm Insert
- Regular price
- $94.57 ex VAT
- Sale price
- $94.57
- Regular price
-
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

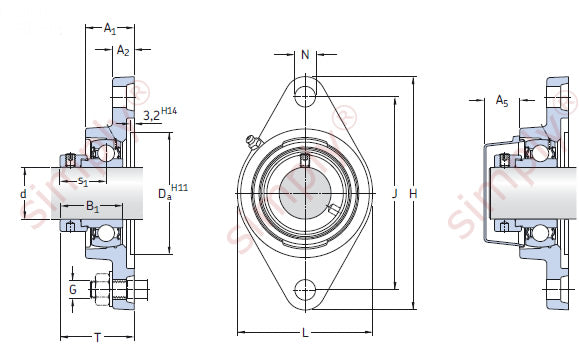

Technical
| d | = | 40mm |
| A1 | = | 38.5mm |
| A2 | = | 14mm |
| B1 | = | 43.7mm |
| Da | = | 88.9mm |
| H | = | 171.5mm |
| J | = | 143.5mm |
| L | = | 102mm |
| N | = | 14mm |
| G | = | 12mm |
| s1 | = | 32.7mm |
| T | = | 56.7mm |
| Static load Cr | = | 19 kN |
| Dynamic load Cor | = | 30.7 kN |
| Fatigue load limit Pu | = | 0.8 kN |
| Limiting speed | = | 4800 rpm |
| A5 | = | 23.5mm |
| Weight | = | 1.7 kg |
| Compatible end cover closed | = | ECY208 |
