SKU: FYTB20WF-SKF

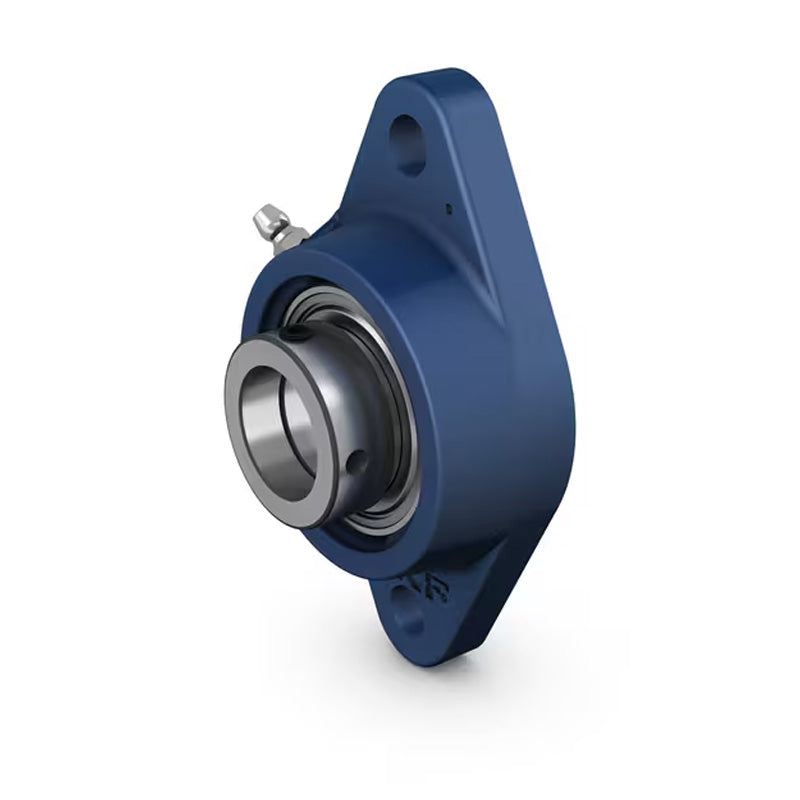

SKF FYTB20WF Oval Cast Housing with Grub Screw 20mm Insert
- Regular price
- $62.55 ex VAT
- Sale price
- $62.55
- Regular price
-
In stock
Quantity Price Breaks
10+
$55.67
19+
$52.54
29+
$51.92
39+
$51.29
49+
$50.67
74+
$50.04
99+
$46.91
199+
$46.29
249+
$45.66
499+
$45.04
999+
$43.79
SKU:
FYTB20WF-SKF
SKF FYTB20WF Oval Cast Housing with Grub Screw 20mm Insert
- Regular price
- $62.55 ex VAT
- Sale price
- $62.55
- Regular price
-
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

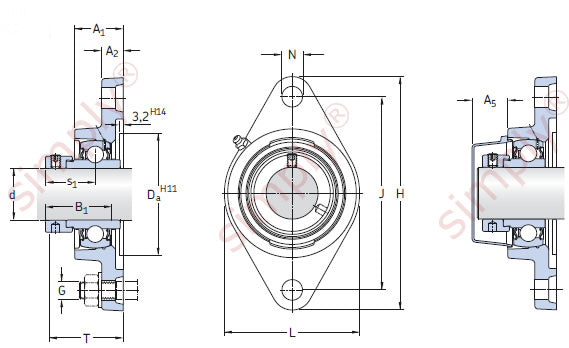

Technical
| d | = | 20mm |
| A1 | = | 29.5mm |
| A2 | = | 11mm |
| B1 | = | 43.7mm |
| Da | = | 50.8mm |
| H | = | 112mm |
| J | = | 90mm |
| L | = | 60.5mm |
| N | = | 11.5mm |
| G | = | 10mm |
| s1 | = | 26.6mm |
| T | = | 45.6mm |
| Static load Cr | = | 6.55 kN |
| Dynamic load Cor | = | 12.7 kN |
| Fatigue load limit Pu | = | 0.28 kN |
| Limiting speed | = | 8500 rpm |
| A5 | = | 18.5mm |
| Weight | = | 0.55 kg |
| Compatible end cover closed | = | ECY204 |
